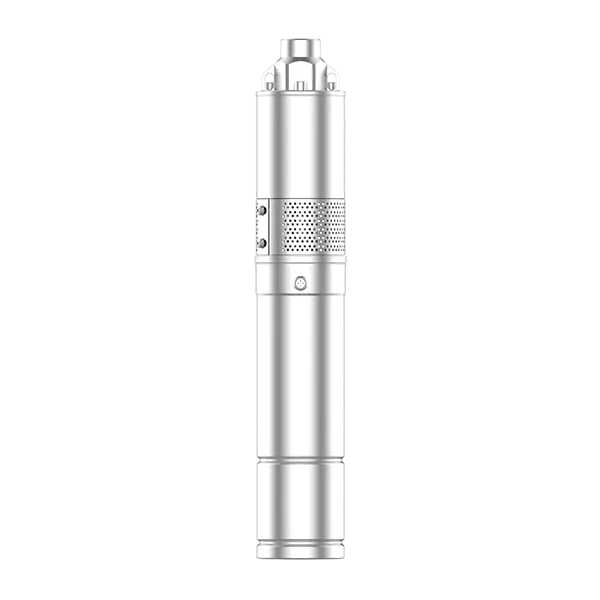

3HR DC Solar Well Screw Pump
Cost-effective solar pumping systems deliver long-lasting performance while remaining environmentally friendly.
- Superior Efficiency: 90-95% energy conversion rate
- Durable Protection: IP65 & IP68 certified
- Cost Effective: Save 70-90% yearly expenses
- Low Maintenance: Under $10 annual upkeep
- Long-Lasting: 20+ years reliable performance
Products Categories
Get A Free Quote
3HR DC Solar Well Screw Pump Data Sheet
| Nos | Model | Rated Vol.(V) | Power(W) | Best Vmp(V) | Voc(V) | PV Panel Power | Q.Max(m²/h) | H.Max(M) | Outlet(Inch) |
| 1 | 3RS1-30-24-80 | 24 | 80 | 24-48 | <55 | ≥1.3*Pump Power | 1 | 30 | 0.75″ |
| 2 | 3RS1.3-50-24-140 | 24 | 140 | 24-48 | <55 | ≥1.3*Pump Power | 1.3 | 50 | 0.75″ |
| 3 | 3RS1.8-80-24-210 | 24 | 210 | 24-48 | <55 | ≥1.3*Pump Power | 1.8 | 80 | 0.75″ |
| 4 | 3RS1.8-100-48-300 | 48 | 300 | 48-96 | <105 | ≥1.3*Pump Power | 1.8 | 100 | 0.75″ |
| 5 | 3RS1.8-120-48-500 | 48 | 500 | 48-96 | <105 | ≥1.3*Pump Power | 1.8 | 120 | 0.75″ |
| 6 | 3RS2.3-140-48-750 | 48 | 750 | 48-96 | <105 | ≥1.3*Pump Power | 2.3 | 140 | 0.75″ |
| 7 | 3RS2.3-140-72-750 | 72 | 750 | 72-144 | <160 | ≥1.3*Pump Power | 2.3 | 140 | 0.75″ |
| 8 | 3RS2.3-160-72-1000 | 72 | 1000 | 72-144 | <160 | ≥1.3*Pump Power | 2.3 | 160 | 0.75″ |
| 9 | 3RS2.3-180-72-1200 | 72 | 1200 | 72-144 | <160 | ≥1.3*Pump Power | 2.3 | 180 | 0.75″ |
Get Free Quote of 3HR DC Solar Well Screw Pump
