The Best Automatic Water Pressure Booster Pump

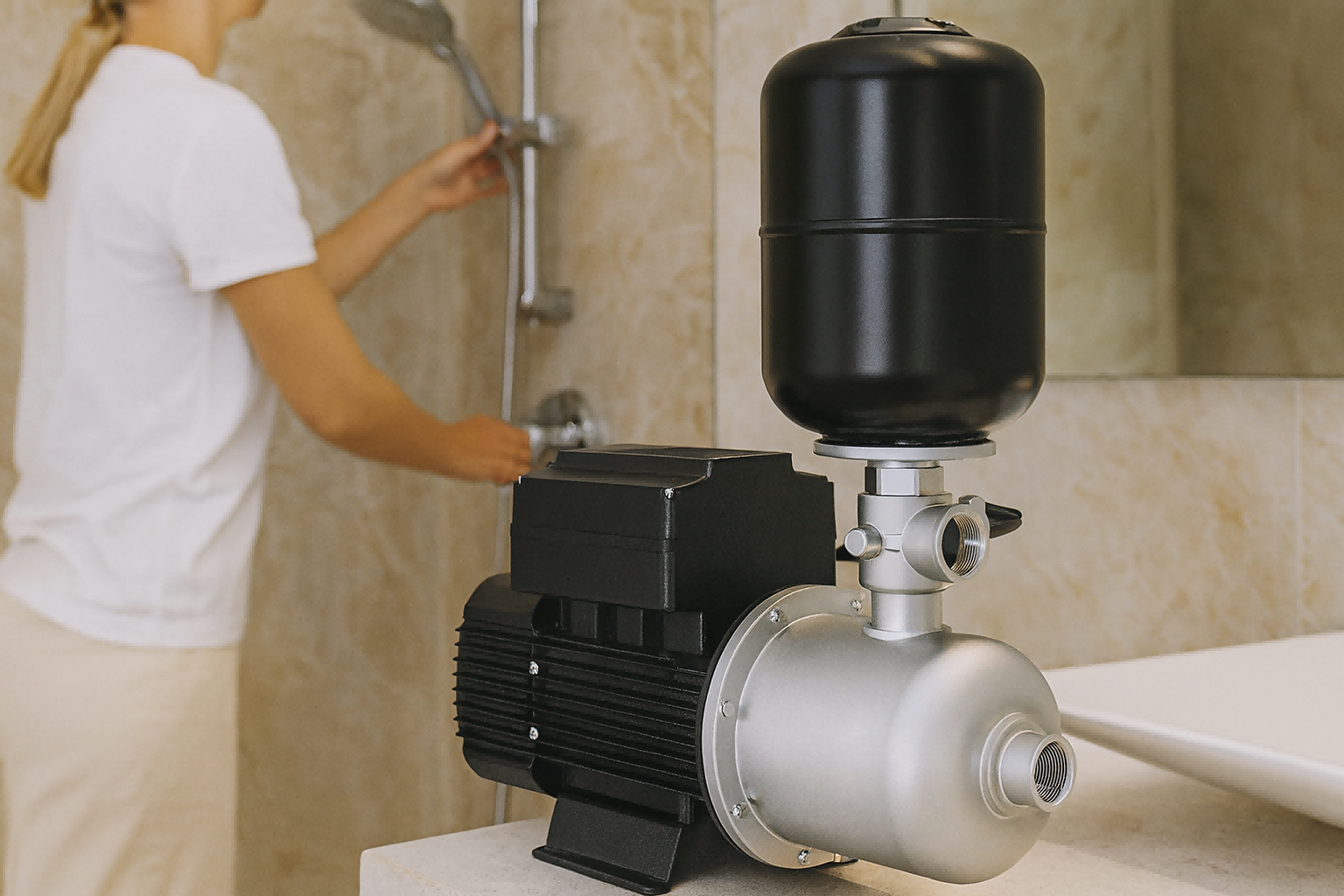

Struggling with weak showers and fluctuating water flow?

This inconsistent pressure is frustrating and can signal an inefficient water system.

A modern automatic water pressure booster pump solves this problem effortlessly.

The best automatic booster pumps feature Variable Frequency Drive (VFD) technology paired with a permanent magnet motor. This combination delivers perfectly constant pressure, operates almost silently, and dramatically cuts energy use. Prioritize models with extensive electronic protections and high-quality materials for maximum longevity.

Choosing the right booster pump can feel overwhelming with so many options available.

However, understanding the core technologies that separate a good pump from a great one is key.

This guide will break down the essential features to look for.

We will delve into performance, durability, and intelligence.

This will empower you to make an informed decision for your residential or commercial needs.

Top 1：RAFSUN TWIN BOOSTER PUMP

Struggling with a pump that can't keep up with demand?

This results in frustrating pressure drops and inefficient operation.

A smart twin booster system offers a powerful and reliable solution.

A top-tier twin booster system intelligently links two pumps to work in unison. It uses one pump for low demand and automatically activates the second for high flow, ensuring constant pressure while balancing runtime for extended equipment life.

A twin booster pump set is the ultimate solution for applications where water demand varies significantly and reliability is non-negotiable.

These systems are not just two pumps bolted together.

They are integrated, intelligent units designed for peak performance and efficiency.

The true value of a twin system lies in its ability to adapt, protect itself, and provide a seamless supply of water under all conditions.

Let's explore the sophisticated engineering that makes these systems a superior choice for demanding residential and commercial environments.

The Engineering Behind Smart Twin Pump Operation

The core of a great twin system is its intelligent control logic.

This is what allows the two pumps to function as a single, cohesive unit.

Intelligent Demand-Based Operation: The system constantly monitors water flow.

For low-demand tasks like filling a sink, it will only run a single pump at the required speed.

When demand spikes, such as multiple showers running simultaneously, the controller instantly activates the second pump.

This cascade control ensures you always have the pressure you need without wasting energy.

Automatic Pump Alternation: To maximize the lifespan of the equipment, the system automatically alternates which pump serves as the lead pump.

This ensures that both pumps accumulate a similar number of operating hours.

This balanced approach to wear and tear effectively doubles the longevity of the system.

It also guarantees that a healthy backup pump is always ready.

Unpacking the Core Technical Advantages

Beyond the smart linking, the individual pumps in a top-tier system must be exceptional.

The performance of the whole is dictated by the quality of its parts.

A Comprehensive Insight into Advanced Pump Design

• Superior Performance & Energy Efficiency: The foundation is a high-efficiency motor, like a Permanent Magnet Synchronous Motor (PMSM), controlled by a Variable Frequency Drive (VFD). This pairing delivers stable, fluctuation-free pressure while keeping noise levels incredibly low, often under 50dB.
• Exceptional Durability & Reliability: Look for systems with a comprehensive suite of safety protections—at least 14 unique safeguards. These should protect against everything from dry running and overheating to voltage issues and frost. The most critical feature for durability is a fully sealed, IP67-rated waterproof core for the electronics, protecting them from moisture and extending their lifespan significantly.
• Premium Materials: The choice of materials is a clear indicator of quality. Impellers made from AISI304 stainless steel or brass, paired with a UV-resistant ABS housing, ensure long-term performance and resistance to corrosion and environmental degradation.
• Smart Design & Premium Features: Modern systems should offer optional WiFi for remote monitoring via a smartphone. They should also be ready for high-temperature applications up to 75°C, making them suitable for solar heating systems. Integrating a pressure tank further enhances the system by reducing pump cycling by up to 70%, which prevents water hammer and reduces wear.

Top 2: Grundfos SCALA and CMBE TWIN series

Are you considering a pump from a well-known global brand?

These systems are often seen as a safe, reliable choice for boosting water pressure.

But it's crucial to understand their specific features and how they compare.

Grundfos offers twin booster sets like the CMBE TWIN, which are all-in-one solutions known for reliability. They feature pump alternation, cascade control, and dry-run protection, making them a solid choice for commercial and domestic water supply.

Grundfos is a major player in the pump industry, and their products are widely used in various applications.

Systems like the CMBE TWIN are designed as comprehensive, factory-assembled solutions to simplify installation and ensure reliable operation.

They focus on providing constant pressure through variable-speed technology.

Let's examine the specific technical attributes and features that define these systems.

Key Features of a Grundfos Twin System

Grundfos emphasizes an "all-in-one" design philosophy.

This means their booster sets arrive ready to install with most necessary components included.

Integrated System Design: The CMBE Twin system consists of two CMBE pumps connected in parallel.

They are mounted on a common base plate with a manifold.

The package includes the pumps, motors, a tank, sensors, controller, check valve, and fuse box.

This integration simplifies the sourcing and assembly process for installers.

Core Control Functions: Like other advanced systems, Grundfos includes key smart features.

• Cascade Control: The system activates the second pump when high flow is needed.
• Pump Alternation: It automatically switches the lead pump to ensure operating hours are distributed evenly between the two units.
• Multi-Master Capability: Both pumps have the ability to act as the control unit, providing an extra layer of redundancy.
• Dry Running Protection: An essential feature that protects the pumps from damage if the water supply is interrupted.

Technical Specifications and Materials

The technical details reveal the engineering choices behind the product.

CMBE 10-54 TWIN Example

• Motor and Power: This model features a 1.5 kW (2 HP) high-efficiency ECM motor. It is available in different voltage configurations, including 1x200-240V.
• Materials: The pump housing and impeller are made from stainless steel (AISI 304). This is a high-quality choice that ensures durability and resistance to corrosion. The rubber components are EPDM.
• Performance: The pump is designed to deliver constant pressure, with a maximum system pressure of 145 psi. The noise level is rated at 57dB or less in typical use, which is low but not as silent as some competitors.
• Installation: The unit is heavy, with a net weight of 180 lbs (about 82 kg). It uses standard NPT 2" connections for the inlet and outlet.

The TBMH and TBMFHC Series

Grundfos also offers other twin booster sets, like the TBMH series.

These systems provide a wider range of performance options.

Construction: These pumps often feature a cast iron casing with an axial suction and radial discharge port.

The cast iron parts are typically CED coated for corrosion resistance.

The impellers are fabricated from AISI 304 stainless steel.

Performance Range: The TBMH series offers a broad flow range up to 28 m³/h and a head range up to 82 meters.

This versatility makes them suitable for a wide array of domestic, commercial, and industrial applications.

Top3: DAB ESYBOX MAX

Searching for a highly modular and scalable booster system for a large commercial building?

Traditional systems can be rigid and difficult to install in tight spaces.

A modular design offers unparalleled flexibility.

The DAB ESYBOX MAX is an integrated, modular pumping system designed for commercial buildings. Its key strengths are its configurable design—from single to quad-pump setups—and its quiet operation, allowing for installation directly at the site.

The ESYBOX MAX from DAB Pumps represents a different approach to water pressurization, especially for medium to large condominiums and tall buildings.

Its design philosophy is centered around modularity and on-site assembly.

This allows installers to build a system perfectly tailored to the building's needs, even in complex retrofits.

Let's explore the innovative features that set this system apart.

The Power of Modular Construction

The standout feature of the ESYBOX MAX is its modularity.

This provides flexibility that fixed systems cannot match.

Configurable Setups: The system is built from core components: a connection base and individual pumping units.

This allows for single, double, or triple pump configurations.

An additional kit can even connect two double bases to create a powerful four-pump system.

On-Site Assembly (O.S.A. Concept): The modular nature means the pumping groups can be assembled directly at the installation site.

This is a huge advantage for projects with limited access or tight mechanical rooms.

It avoids the logistical challenges of moving a large, heavy, pre-assembled unit into place.

Advanced Technology and Smart Connectivity

Beyond its physical design, the ESYBOX MAX incorporates advanced electronic controls.

Water-Cooled Motor: The pump uses a water-cooled permanent magnet motor.

This design contributes to its very quiet operation and efficient thermal management.

The motor shaft is made of durable AISI 303 stainless steel.

VFD Control and Integrated Protections: A variable frequency drive maintains constant pressure by adjusting motor speed.

The system includes a full suite of integrated protections: dry running, abnormal voltages, overheating, freezing, and anti-cycling.

Smart Connectivity with DConnect: The system is designed for the modern age with an integrated Wi-Fi module.

Using the DConnect app, users can remotely control and monitor the system.

You can adjust pressure, view alarms, and check energy consumption history from a smartphone or tablet.

DSync technology simplifies the setup of multi-pump systems; once the first pump is configured, the others synchronize automatically.

Construction and Certifications

DAB has paid close attention to the materials and regulatory compliance.

The use of technopolymer for the pump body and impellers is a key difference from the all-stainless-steel construction of some competitors.

However, its extensive list of certifications, including for drinking water safety (NSF 61/372), confirms its suitability for a wide range of commercial applications.

Conclusion

Choosing the best pump means matching technology to your needs.

VFD with PMSM motors, robust protections, and quality materials define a top-tier system.

This ensures constant pressure, high efficiency, and long-term reliability.

FAQs

What is the best pressure for a water booster pump?

For residential use, pressure is typically set between 40-60 PSI. Commercial applications may require higher, customized pressure settings based on building height and demand.

How long do booster pumps last?

A well-maintained VFD booster pump can last 8-15 years. Longevity depends on build quality, component materials, and the effectiveness of its electronic protection systems.

Do booster pumps use a lot of electricity?

Modern VFD booster pumps are highly energy-efficient. They can reduce electricity consumption by up to 50% compared to traditional fixed-speed pumps by only using the power needed.

Can a booster pump be too powerful?

Yes, an oversized pump can waste energy and potentially damage plumbing. Proper sizing is crucial, though VFD technology helps mitigate this by adjusting its output.

What is pump cycling and why is it bad?

Pump cycling is the frequent starting and stopping of the pump. It causes excessive wear on the motor and wastes energy. A pressure tank and soft-start function help prevent it.

What is dry run protection?

It is a critical safety feature that automatically shuts off the pump when it detects a lack of water. This prevents the motor from overheating and burning out.

What does an IP67 rating mean for a pump's electronics?

An IP67 rating means the electronic controller is completely dust-tight and can be submerged in water up to 1 meter deep. This offers maximum protection against moisture and failure.

Why is a permanent magnet motor (PMSM) better?
A PMSM is more energy-efficient, runs quieter, and offers more precise speed control compared to a standard induction motor, resulting in better overall performance.
