What are the benefits of VSD?

Struggling with high energy bills and unreliable water pressure?

These issues can increase your operating costs and affect performance, making it hard to stay efficient and competitive.

A Variable Speed Drive (VSD) offers a smart solution.

It adjusts motor speed to match real-time demand, significantly cutting energy use, reducing mechanical wear, and providing precise control for stable, efficient operation across many applications.

Variable Speed Drive technology is more than just an upgrade.

It represents a fundamental shift in how we power equipment.

Instead of running motors at full speed all the time, a VSD acts like a smart throttle.

It gives the motor exactly the amount of power it needs for the task at hand, and no more.

This simple concept unlocks a wide range of powerful benefits that go far beyond just saving energy.

These advantages impact everything from your budget to the lifespan of your expensive machinery.

Let's explore these benefits one by one to see how they can transform your operations.

Energy and Cost Savings

Are your electricity bills for running motors and pumps surprisingly high?

This constant drain on resources is often due to motors running at full speed, even when it's not needed.

A VSD dramatically lowers energy consumption by precisely matching motor speed to the actual load.

This directly translates into significant cost savings on your utility bills and reduces overall operational expenses.

A VSD, also known as a Variable Frequency Drive (VFD), is the core of modern energy efficiency in motor-driven systems.

Its primary function is to regulate the speed of an electric motor.

Unlike traditional fixed-speed systems that are either fully on or fully off, a VSD provides a smarter approach.

It adjusts the frequency of the electrical power supplied to the motor.

This, in turn, adjusts the motor's rotational speed (RPM).

This capability is what unlocks massive potential for energy and cost reduction.

How VSDs Reduce Energy Consumption

The relationship between motor speed and energy use is not linear.

This is governed by the Affinity Laws for pumps and fans.

A small reduction in speed can lead to a very large reduction in energy consumption.

For example, reducing a pump's speed by just 20% can cut its energy use by nearly 50%.

A VSD system constantly analyzes the demand of the system.

It then adjusts the motor's speed to meet that exact demand.

Think of a water booster pump in a building.

Demand is low at night but high in the morning.

A fixed-speed pump would run at 100% power anytime it turns on.

A VSD-equipped pump will run at a lower speed overnight, consuming far less power.

It only ramps up to full speed during peak demand.

This intelligent power management prevents the immense energy waste seen in fixed-speed systems.

Impact on Operational Costs

Lowering energy consumption has a direct and immediate impact on your bottom line.

Operational costs for equipment like pumps, fans, and compressors are largely driven by electricity bills.

By implementing VSDs, businesses can see substantial reductions in these costs.

This allows for a quick return on investment (ROI).

Furthermore, some regions offer financial incentives or rebates for installing energy-efficient technologies like VSDs.

This can further shorten the payback period.

The ability to operate across a wide voltage range, such as 165–260V, also adds a layer of cost protection.

Systems with this feature can operate stably even on poor power grids.

This prevents costly shutdowns or damage that might occur with less adaptable equipment.

Eliminating Wasted Energy in Mechanical Components

Many older systems use inefficient methods to control output.

They might use throttling valves or bypass loops.

A throttling valve is like putting your foot on a car's accelerator and brake at the same time to control its speed.

The motor runs at full power, but the valve restricts the flow, wasting a tremendous amount of energy.

Similarly, a bypass system sends excess output back to the source, another form of wasted energy.

VSDs make these mechanical components obsolete.

By controlling output at the source—the motor itself—VSDs ensure that nearly all the energy consumed is used for productive work.

This not only saves energy but also reduces the complexity and maintenance needs of the system.

Equipment Longevity and Reliability

Worried about the constant wear and tear on your expensive motors and pumps?

Sudden, high-current startups and mechanical shocks can drastically shorten the life of your equipment, leading to frequent repairs.

VSDs provide a soft start and stop function.

This gradual ramp-up reduces mechanical stress and electrical surges, significantly extending the life of motors, pumps, fans, and connected components like pipes and valves.

Reliability is a critical factor in any industrial or commercial operation.

Unexpected equipment failure can lead to costly downtime, lost production, and emergency repair bills.

Variable Speed Drives are instrumental in enhancing the durability and reliability of the entire system.

They achieve this not just through soft starting but also by offering a suite of intelligent protections.

These features safeguard your investment from both internal and external threats, ensuring consistent operation over a long service life.

The Power of Soft Starting and Stopping

A traditional motor that starts "across the line" experiences a massive inrush of electrical current.

This can be six to eight times the motor's normal operating current.

This electrical jolt stresses the motor windings and power supply components.

Simultaneously, the motor lurches from zero to full speed almost instantly.

This creates immense mechanical stress on shafts, bearings, couplings, and belts.

A VSD completely changes this dynamic.

It starts the motor with a low frequency and voltage, gently accelerating it to the desired speed over a programmed ramp time.

This soft start process is much kinder to the equipment.

• Reduces Electrical Stress: The current draw is controlled and smooth, preventing voltage dips in your facility's power grid and reducing heat buildup in the motor.
• Minimizes Mechanical Stress: The gradual acceleration eliminates the sudden torque and shock that cause wear and tear.

This same principle applies when stopping.

A VSD can gradually ramp a motor down, providing a soft stop.

This is crucial in fluid systems for preventing a phenomenon known as water hammer.

Water hammer is a pressure surge caused by a fluid in motion being forced to stop or change direction suddenly.

It can be powerful enough to damage pipes, fittings, and valves.

By stopping pumps slowly, a VSD prevents these destructive pressure waves.

Built-in Protection Systems

Modern VSDs are more than just motor controllers; they are intelligent protection devices.

They constantly monitor a wide range of operating parameters to protect both the motor and the drive itself.

Some advanced systems offer as many as 14 distinct layers of protection.

This "digital shield" acts as a vigilant supervisor for your equipment.

Key Protective Functions

For example, a high-quality VSD pump's electronics are often fully sealed in a process called potting.

This potting creates an IP67 waterproof barrier for the main controller board.

It protects the sensitive electronics from moisture, dust, and condensation—elements that are very common in pump environments.

This single feature can prevent the vast majority of moisture-related failures and extend the controller's lifespan by several years.

Performance and Control

Is it a challenge to maintain consistent pressure or flow in your processes?

Inconsistent performance can lead to poor product quality, wasted materials, and inefficient operations, especially in sensitive applications.

VSDs offer exceptionally precise control over motor speed.

This allows you to maintain exact pressure, flow, or speed levels, resulting in stable operation, improved product quality, and higher overall system performance.

The ability to precisely control a process is a cornerstone of modern automation and quality control.

In any application driven by a motor, the motor's speed directly influences the output.

By giving you granular control over that speed, a VSD transforms a simple motor into a highly responsive, intelligent tool.

This level of control unlocks performance improvements that are impossible to achieve with fixed-speed systems.

It allows you to fine-tune your operations for optimal results, whether you are managing water pressure in a high-rise building or controlling the speed of a conveyor belt in a factory.

Achieving Constant Pressure and Stable Operation

One of the most celebrated applications of VSDs is in booster pump systems.

The goal in these systems is to maintain a constant, unwavering water pressure, regardless of how many taps or outlets are open.

A fixed-speed pump cannot achieve this.

It turns on at full power when pressure drops below a certain point and turns off when it hits an upper limit.

This creates a noticeable and often annoying pressure fluctuation for the end-user.

A VSD system with an intelligent controller and a pressure sensor works differently.

1. Senses Pressure Drop: When a tap is opened, the pressure sensor detects a slight drop.
2. Adjusts Motor Speed: The VSD controller instantly increases the motor's speed just enough to compensate for the drop and hold the pressure at the desired setpoint.
3. Maintains Constant Pressure: As more taps are opened, the VSD seamlessly increases the pump speed further. As taps are closed, it slows the pump down.

The result is a perfectly stable supply of water pressure.

This is critical not only for user comfort in residential settings but also for industrial processes in sectors like food and beverage, where consistent pressure is vital for product quality.

Improving Product and Process Quality

Precise control over motor speed has a direct impact on quality in many manufacturing and production environments.

Inconsistent speed can lead to defects, rework, and wasted materials.

A VSD provides the stability needed for high-quality outcomes.

Examples of VSDs Improving Quality

By giving operators the ability to dial in the perfect speed for any given task, VSDs empower businesses to achieve higher levels of precision.

This leads to fewer production errors, less scrap, and a more consistent, high-quality final product.

This level of control can even be managed remotely via smartphone apps in some modern systems, allowing for real-time monitoring and adjustments from anywhere.

Other Advantages

Are you looking for solutions that do more than just the primary task?

Beyond the main benefits, small improvements in noise, space, and smart features can significantly add up to a better operational environment.

Modern VSD systems are engineered with additional advantages.

They often run quieter, have a smaller physical footprint, and offer advanced connectivity for remote monitoring, making them a truly comprehensive upgrade.

While the headline benefits of energy savings and precise control are compelling, the supporting advantages of Variable Speed Drives can be just as impactful.

These features contribute to a safer, quieter, and more efficient work environment.

They also provide the flexibility and data needed for smart facility management.

The design philosophy behind today's advanced VSD systems considers the entire user experience, from installation to daily operation and long-term maintenance.

Quieter and Cooler Operation

Noise pollution in industrial and even residential settings is a serious concern.

Fixed-speed motors, especially when starting and stopping abruptly, can be very loud.

Because a VSD-controlled motor rarely needs to run at its maximum speed, its average operational speed is much lower.

This directly translates to a significant reduction in noise.

An advanced pump system combining a VSD with a Permanent Magnet Synchronous Motor (PMSM) can achieve noise levels below 50dB.

That is quieter than a typical library.

This makes them ideal for installation in noise-sensitive environments like hospitals, hotels, and residential buildings.

Lower operating speed also means less heat generation.

Superior thermal management is a hallmark of a well-designed VSD system.

Enhanced airflow design and high heat dissipation efficiency keep the motor and electronics running cool.

A lower temperature rise (e.g., ≤50K) is a key indicator of an efficient motor.

It directly contributes to a longer and more reliable operational lifespan for all components.

Space Savings and Installation Flexibility

Real estate within any facility is valuable.

Bulky equipment can be difficult to position, especially in retrofit projects where space is already limited.

VSDs often eliminate the need for large, complex mechanical components like bypass valves and large starter panels.

This simplifies the overall system design.

Furthermore, the VSD unit itself and the motors they control are continuously becoming more compact.

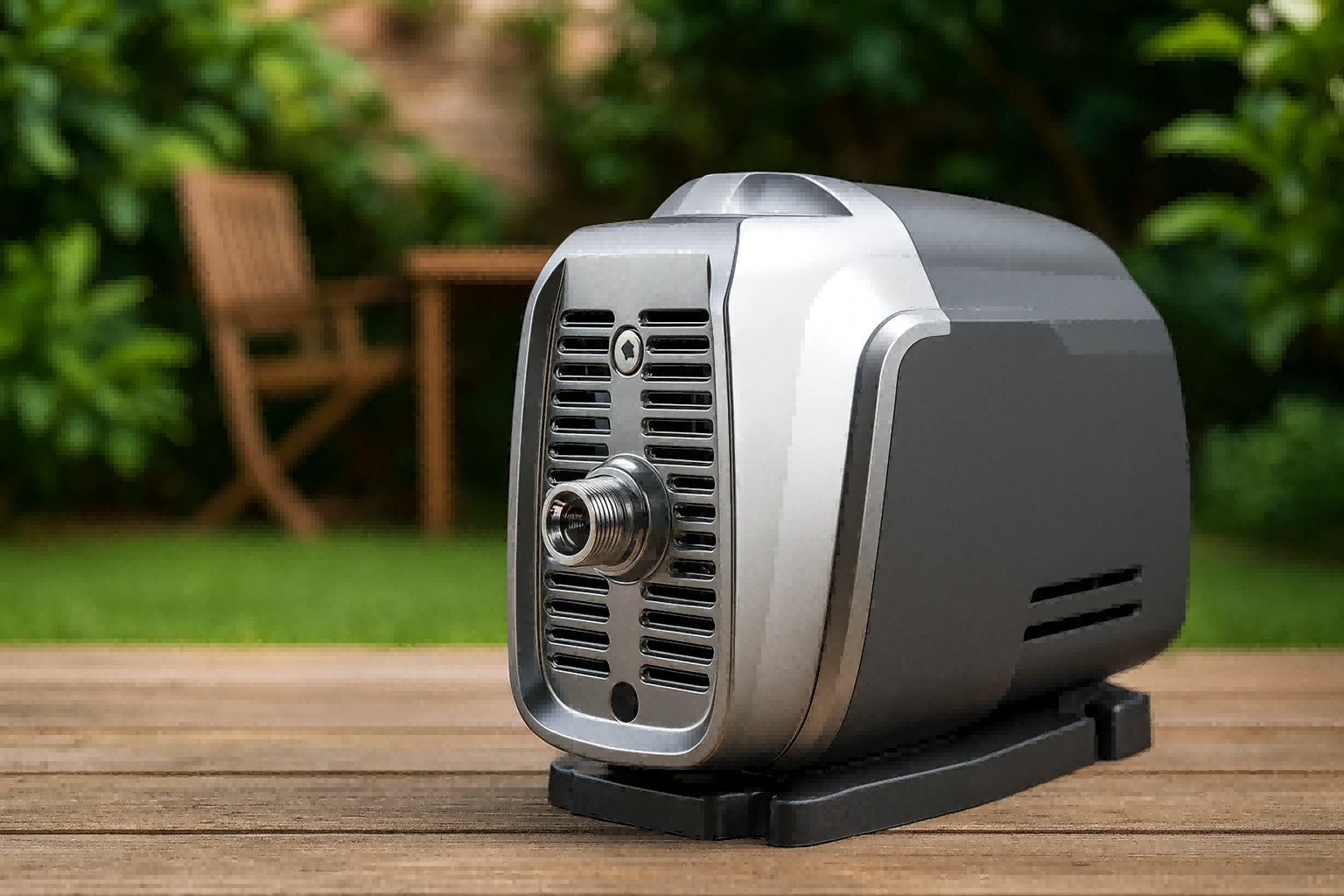

Some VSD pump systems are designed as integrated, all-in-one units.

This compact design provides tremendous flexibility during installation.

They can be fitted into tight spaces without requiring extensive modifications to existing infrastructure.

This is a significant benefit for system integrators and installers.

Smart Connectivity and Advanced Features

The integration of smart technology is a major advantage of modern VSDs.

Many drives now come equipped with communication capabilities.

This allows them to connect to building management systems or even be controlled remotely.

Smart Features Enabled by VSDs:

• Remote Monitoring: Optional WiFi modules enable users to monitor pump performance in real-time from a smartphone or computer. You can check parameters like power consumption, motor speed, and water temperature from anywhere.
• Twin Pump Operation: For applications with highly variable demand or a need for redundancy, a twin pump link mode is a powerful feature. Two VSD pumps can communicate with each other. One pump handles low demand, the second pump automatically activates to assist during peak demand, and they can alternate duties to ensure even wear. If one pump fails, the other can take over as a backup.
• High-Temperature Handling: Some specialized VSD pump systems are designed to handle hot water up to 75°C. This makes them suitable for applications like solar heating systems and hot water circulation loops.

These intelligent features provide a higher level of control, data, and automation.

They transform a simple piece of equipment into a smart asset that helps optimize maintenance schedules and overall system performance.

Conclusion

In summary, a VSD delivers major savings, extends equipment life, and provides precise control.

It is a powerful technology that makes operations more efficient and reliable.

FAQs

What is the main function of VSD?

The main function of a VSD is to control an electric motor's speed. It adjusts the electrical frequency supplied to the motor, allowing it to run at any speed needed.

What are the disadvantages of VSD?

The primary disadvantages are a higher initial purchase cost compared to a basic starter and the potential for creating electrical noise (harmonics) that may need to be filtered.

Where are VSDs used?

VSDs are used everywhere, including pumps, fans, compressors, conveyors, and HVAC systems. They are found in residential buildings, commercial facilities, and countless industrial processes.

Is a VSD a soft starter?

A VSD includes the function of a soft starter, but it does much more. While a soft starter only controls the motor during startup, a VSD controls its speed throughout operation.

Does a VSD save energy?

Yes, a VSD saves significant energy. By matching motor speed to the actual load, it eliminates wasted energy common in fixed-speed systems, often reducing consumption by 30-50%.

Why use a VSD on a pump?

Using a VSD on a pump enables constant pressure control, saves a large amount of energy, and reduces mechanical stress by providing a soft start, preventing issues like water hammer.

What is VSD and its application?

VSD stands for Variable Speed Drive. It's an electronic device that controls motor speed. Applications include HVAC systems, water boosting, industrial machinery, and any process needing controlled motion.

How much energy can a VSD save?

Energy savings depend on the application, but it is often substantial. For pump and fan applications, a VSD can typically save between 30% and 60% on electricity costs.
