4 Essential Secrets You Must Know Before Buying a Solar Water Pump?

Worried about high electricity bills or unreliable power for irrigation? Choosing the wrong solar water pump is a costly mistake that can leave your fields dry. Let me share the secrets to getting it right.

To buy the right solar water pump, you must first calculate your total dynamic head (TDH) and daily water volume needs. Then, match these requirements to a pump's specifications, consider the system's components like solar panels and inverters, and evaluate the long-term ROI and maintenance.

This sounds simple on the surface, but the devil is always in the details. I'm an engineer, and I've spent more than ten years in the solar water pump industry. Over that time, I've seen many people, even skilled technical professionals like my friend Jacky in Thailand, overlook these crucial points before a purchase. He knew conventional pumps inside and out, but the specifics of a solar-powered system tripped him up at first.

Let's break down each secret, one by one. I want to give you the knowledge I've gained from working with our R&D team at Rafsun and helping over 50,000 customers worldwide. By the end of this guide, you will be able to choose a solar water pump with complete confidence.

How do I choose the right size and type of solar water pump?

Overwhelmed by pump models and technical specs? Buying the wrong size wastes money on energy or fails to deliver enough water. Let me simplify the sizing process for you.

To choose the right size, calculate your Total Dynamic Head (TDH) by adding vertical lift to friction loss. Next, determine your required daily water flow (GPD/LPD). Match these two numbers to a solar water pump performance curve to find the perfect model for your needs.

This is, without a doubt, the most critical step. Get this wrong, and your entire system will disappoint. I remember helping Jacky with a project for a large sugarcane farm. He's a brilliant engineer but initially only calculated the vertical lift from the well to the storage tank. He forgot to account for the friction loss over a 500-meter pipe run. It's a common oversight that would have resulted in a pump that delivered only half the required water. We corrected it, but it shows how easily this can be missed. Let's make sure you don't make the same mistake.

Step 1: Calculate Your Total Dynamic Head (TDH)

TDH is the total pressure the pump has to overcome. It's not just how deep your well is. It's a combination of two things:

• Vertical Lift (Static Head): This is the total vertical distance the water has to travel. Measure from the water level in your well (not the ground level) up to the highest point of the delivery pipe, like the inlet of a storage tank.
• Friction Loss: As water moves through pipes and fittings (like elbows and valves), it creates friction, which is like extra "head" the pump has to push against. Longer pipes and smaller diameters create more friction.

You can use online calculators, but here is a simple table to give you an idea of how pipe size affects friction loss. This shows the head loss (in meters) per 100 meters of pipe.

Your Formula: TDH = Vertical Lift + Friction Loss

Step 2: Determine Your Daily Water Requirement

How much water do you need per day? This depends entirely on your application.

• For Home Use: A general rule is about 150-250 liters per person per day.
• For Livestock: This varies greatly. A cow might need 50 liters/day, while a sheep might only need 5.

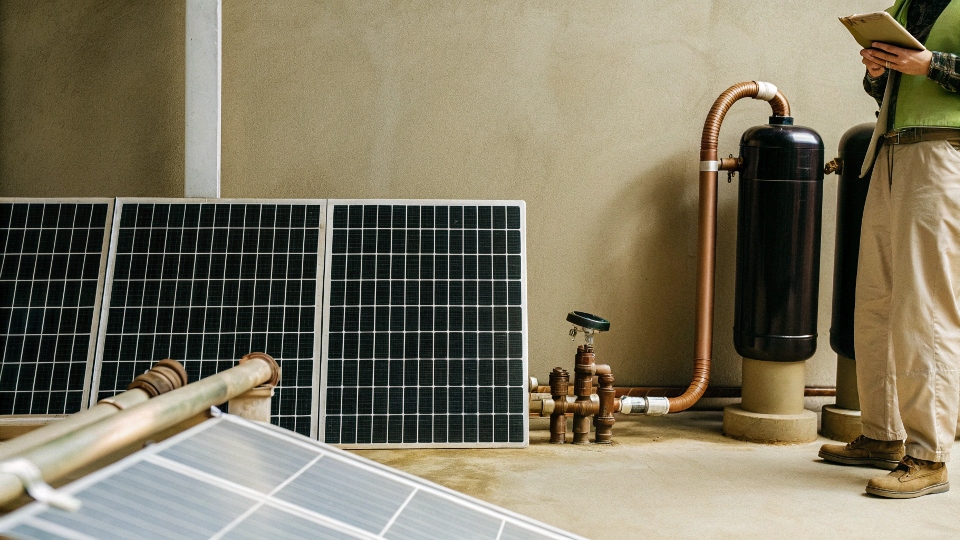

• For Agriculture: This is more complex and depends on the crop, soil type, and climate. For example, a small vegetable garden might need 20 liters per square meter on a hot day.

Be realistic, but also plan for your peak needs. It’s better to have a little extra capacity than not enough.

Step 3: Choose Between Submersible and Surface Pumps

Once you know your numbers, you need to pick the right type of pump. The choice is simple.

Choosing the wrong type simply won't work. A surface pump can't lift water from a deep well, and a submersible pump is overkill for a shallow pond.

What are the key components of a solar water pump system and how do they work together?

A solar pump is more than just a pump. Misunderstanding the components leads to poor performance and system failure. Let's look at the complete picture for a powerful, efficient system.

A complete solar water pump system includes the solar panels (power source), the pump and motor (the workhorse), and a controller/inverter (the brain). The controller's MPPT technology is crucial, as it optimizes the power from the panels to run the pump efficiently throughout the day.

Think of your solar water pump system as a highly specialized team. If the power source is weak or the brain isn't smart, the workhorse can't do its job properly. I've seen people pair a fantastic, high-efficiency pump with a cheap controller without MPPT. The result? The pump barely runs on a cloudy day and underperforms even in full sun. It’s a total waste of the pump’s potential. At Rafsun, we design these components to work in perfect harmony.

The Power Source: Solar Panels

The solar panels are your fuel tank. They convert sunlight into DC electricity to power the motor.

• Sizing: The total wattage of your solar array needs to match the power requirements of your pump's motor. As a rule of thumb, you should aim for the panel array's power to be about 1.3 to 1.5 times the pump motor's power rating. This "oversizing" ensures good performance even when it's not perfectly sunny.
• Types: Monocrystalline panels are generally more efficient and perform better in lower light, making them a great choice for solar pumping systems. Polycrystalline panels are slightly less expensive but also less efficient.

The Workhorse: The Pump and Motor

This is the component that does the actual work of moving water. The key is in the motor technology.

• Motor Type: The industry standard for high-efficiency solar water pumps is the Permanent Magnet Brushless DC Motor. This is what we have specialized in at Rafsun for over a decade. Unlike older asynchronous motors, they don't have brushes that wear out, making them nearly maintenance-free and far more efficient. They convert more of the precious solar electricity into water flow.

We have over 100 patents in this area alone. Our focus has always been on maximizing the water output for every single watt of energy the panels produce.

The Brain: The Solar Pump Controller/Inverter

This is arguably the most important electronic component. It sits between the solar panels and the pump motor and manages the entire operation.

• Its Main Job: It takes the variable DC power from the panels and provides clean, stable power to the pump motor.
• The Magic of MPPT: Its most critical feature is Maximum Power Point Tracking (MPPT). The power output from solar panels changes constantly with the sun's intensity. An MPPT controller constantly scans the panels' output and adjusts the electrical load to extract the absolute maximum amount of power available at any given moment. A system with a good MPPT controller can start earlier in the morning, run later in the evening, and pump more water during cloudy periods. Our Rafsun Solar Pump Inverters are built around this core technology.
• Protection: It also provides vital protection for your pump, including dry-run protection (shuts off if the well runs dry), over-voltage protection, and inputs for sensors like a tank-full switch.

How can I calculate the total cost and ROI of a solar water pump investment?

The initial price tag looks high. Doubting if a solar water pump is a smart financial move? Let's break down the true cost and show you how it pays for itself.

Calculate ROI by dividing the total investment cost (pump, panels, installation) by your annual savings (eliminated electricity or fuel bills). A typical solar water pump system often pays for itself within 2-5 years, providing free water for decades after, making it a powerful long-term investment.

A solar water pump is not an expense; it's an asset that generates value. When I talk to customers, especially farmers or business owners, we always shift the conversation from "cost" to "investment." You wouldn't call a tractor an expense, and a reliable water source is just as fundamental. Let’s run the numbers and see how quickly this asset starts paying you back.

Step 1: Add Up the Total Initial Investment

This is your one-time, upfront cost. It’s important to be thorough.

A complete system for a small farm or a deep residential well might range from $2,000 to $7,000, depending heavily on the depth and water volume required.

Step 2: Calculate Your Annual Savings

Here's where the magic happens. What costs are you eliminating?

• vs. Grid Electricity: Look at your utility bill. If your old pump used 2 kWh per hour and ran for 5 hours a day for 200 days a year, at a rate of $0.15/kWh, your annual cost was 2 * 5 * 200 * 0.15 = $300. This is now your annual saving.
• vs. Diesel/Gas Generator: This is often a huge saving. Let's say a diesel pump uses 1 liter of fuel per hour and runs 5 hours a day. If fuel costs $1.50/liter, that's $7.50 per day. Over 200 days, that's $1,500 in fuel alone. This doesn't even include the cost of oil changes and engine maintenance.

Step 3: Find Your Return on Investment (ROI)

The formula is beautifully simple:

ROI (in years) = Total Initial Investment / Annual Savings

Let's use the diesel pump example. If your new solar water pump system cost $4,000 to install and it saves you $1,500 per year:

$4,000 / $1,500 = 2.67 years

After less than 3 years, the system has completely paid for itself. For the next 20+ years, you are getting free water and saving $1,500 every single year. That's a powerful return.

What are the critical maintenance steps to ensure my solar water pump lasts for years?

You've made the investment. Now you worry about it breaking down. What if it's complicated to maintain? In reality, keeping your solar water pump running is incredibly simple. Let's review.

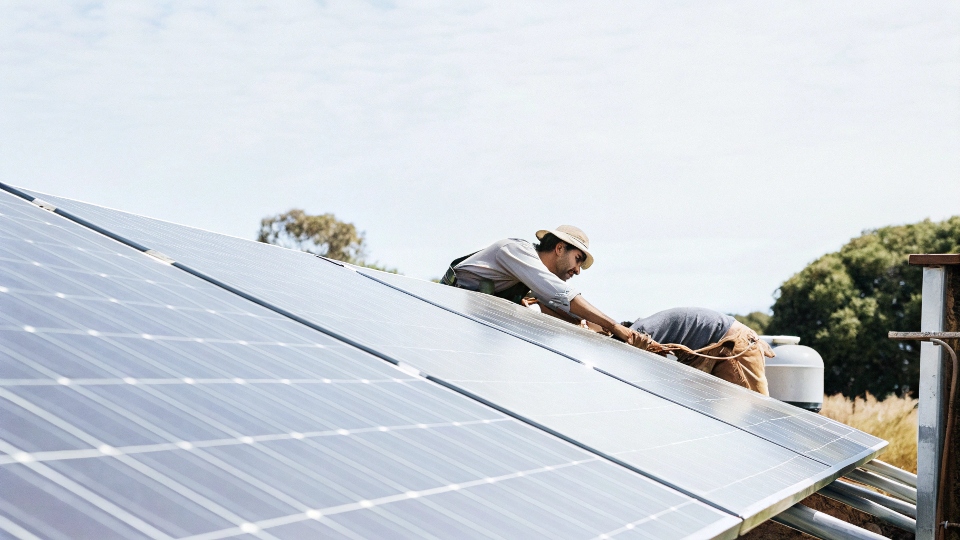

Solar water pump maintenance is minimal. Regularly clean the solar panels to ensure maximum sun exposure. Visually inspect wiring for damage. For the pump itself, check intake screens for clogs. The brushless motors in modern systems, like ours, are virtually maintenance-free and designed for longevity.

The beauty of a well-designed solar water pump system is its "set it and forget it" nature. Of course, no mechanical system is truly zero-maintenance, but this is as close as it gets. At Rafsun, we subject our products to extreme durability tests—144+ hours of salt spray testing and 1000+ hours of UV resistance testing. We design the pumps to withstand harsh conditions so that your maintenance job is easy.

Your Simple Maintenance Schedule

Here is a realistic checklist. It’s less work than maintaining a lawnmower.

That’s it. For a submersible pump deep in a well, there is often no physical maintenance you can even perform on the pump itself. This is why choosing a quality product with a long-life design is so important from the start.

The Best Maintenance is Buying Quality

This brings me to my final point. The single best thing you can do for long-term, trouble-free operation is to invest in a quality system from a reputable manufacturer.

• Look for a brushless motor: As I mentioned, these have no parts designed to wear out. The permanent magnet motors we build are designed for a service life of over 10 years.
• Check the materials: Is the pump body stainless steel to resist corrosion? Are the electronics housed in a properly sealed, weatherproof enclosure (like an IP65 rating)?
• Ask about support: What happens if something does go wrong? Does the company have a track record and customer support to help you troubleshoot? With over 300,000 units sold to 150+ countries, we've learned a lot about supporting our customers for the long haul.

I've seen cheap, no-name pumps fail in under two years because of a corroded housing or a burned-out motor. A well-built solar water pump is a two-decade investment. Don't let a small upfront saving turn into a long-term headache.

Conclusion

Choosing the right solar water pump comes down to proper sizing, understanding all components, calculating the fantastic ROI, and performing simple maintenance. Now you have the secrets to succeed.
