How deep can a 0.75 kW borehole pump go?

Struggling to find the right pump for your well's depth?

You need clear specifications to make a confident purchase.

This guide provides the answers you need.

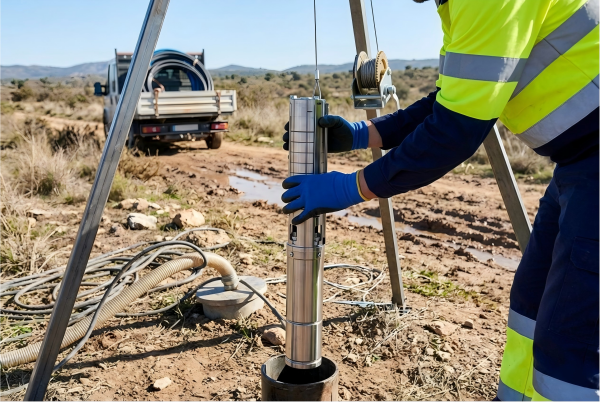

A 0.75 kW (or 1 HP) borehole pump can typically reach a maximum head of around 80 to 120 meters.

However, the effective depth depends heavily on the required flow rate.

Higher flow rates will significantly reduce the maximum pumping depth.

Always check the pump's specific performance curve.

Choosing the right borehole pump can feel overwhelming.

You need to balance power, depth, and flow rate to meet your project's specific needs.

Getting this calculation wrong can lead to an inefficient system or even pump failure.

It's about more than just picking a motor size; it's about understanding how all the components work together to deliver water effectively and reliably.

This article breaks down the critical factors that determine a 0.75 kW pump's true capabilities.

We will explore the concepts of total dynamic head, flow rate, and pump efficiency.

You will gain the technical knowledge to select the perfect pump for any application, ensuring optimal performance and long-term value for your clients.

Let's dive into the details that matter.

Understanding the Core Metrics: Head and Flow Rate

Are you trying to match a pump to a specific well without the right data?

This often leads to choosing an underpowered or overpowered pump.

Both mistakes are costly and inefficient.

A 0.75 kW pump's performance is defined by its head (the vertical distance it can lift water) and flow rate (the volume of water moved).

These two factors are inversely related.

A higher head means a lower flow rate, and vice versa.

Understanding this balance is crucial for selection.

To properly specify a pump, you must look beyond the simple depth of the borehole.

The key is to calculate the Total Dynamic Head (TDH).

This metric provides a much more accurate picture of the work a pump needs to do.

It is the most critical calculation for ensuring you select a pump that meets, but does not excessively exceed, the system's requirements.

Over-sizing a pump by just 10-15% can increase energy consumption by over 20%.

What is Total Dynamic Head (TDH)?

Total Dynamic Head is the total equivalent height that water must be lifted.

It takes into account both the vertical lift and the friction losses in the system.

The formula is a sum of several key components.

TDH = Static Head + Friction Loss + Drawdown

This calculation ensures the pump is powerful enough to not only lift the water but also overcome resistance in the pipes and deliver it at the desired pressure.

Breaking Down the TDH Components

Here's a closer look at each part of the equation.

• Static Head: This is the total vertical distance the water needs to be lifted. It's measured from the pumping water level in the well to the highest point of the delivery pipe (e.g., the inlet of a storage tank).
• Friction Loss: As water moves through pipes, fittings, and valves, it encounters resistance. This resistance, or friction, creates a pressure drop, which is equivalent to adding more vertical height for the pump to overcome. Friction loss increases with higher flow rates and longer pipe distances. Using smoother or larger diameter pipes can reduce friction loss by up to 40%.
• Drawdown: When a pump operates, the water level in the borehole drops. This new, lower level is the pumping water level. The distance the water level drops is called drawdown. It must be added to the static head calculation.

Understanding TDH is non-negotiable for professionals.

It moves the pump selection process from guesswork to a precise engineering calculation.

This ensures the system you install is both effective and energy-efficient, providing long-term reliability for the end-user.

A pump correctly matched to the TDH can be up to 25% more efficient than a poorly selected one.

How to Read a Pump Performance Curve

Choosing a pump based on motor size alone is a common mistake.

This ignores the pump's actual performance under specific conditions.

You risk installing a pump that fails to deliver the required water volume.

A pump performance curve is a graph that shows the relationship between head and flow rate for a specific pump model.

By locating your required Total Dynamic Head (TDH) on the vertical axis, you can see the exact flow rate the pump will deliver on the horizontal axis.

The pump curve is the single most important tool for pump selection.

It provides a visual representation of a pump's capabilities, allowing you to precisely match a pump to your system's unique requirements.

Ignoring this data is like navigating without a map; you might eventually get there, but it won't be the most efficient or reliable route.

A system designed using the pump curve is fundamentally more robust and predictable.

It allows you to guarantee performance to your clients, building trust and reinforcing your reputation as an expert.

Let's explore how to interpret these essential charts.

The Key Elements of a Pump Curve

A standard pump curve plots several critical data points.

Understanding each one is vital for making an informed decision.

• Flow Rate (Q): This is shown on the horizontal axis (x-axis). It's typically measured in liters per minute (l/min), cubic meters per hour (m³/h), or gallons per minute (GPM).
• Head (H): This is shown on the vertical axis (y-axis). It represents the Total Dynamic Head (TDH) in meters or feet.
• Performance Curve Line: This is the main curved line on the chart. It shows the inverse relationship between head and flow. As the head increases, the achievable flow rate decreases.
• Best Efficiency Point (BEP): This is the point on the performance curve where the pump operates most efficiently. Operating the pump at or near its BEP ensures the lowest energy consumption and longest operational life. Running a pump more than 20% away from its BEP can reduce its lifespan by up to 30%.
• Power Curve (P): Some charts include a separate line showing the power consumption (in kW or HP) at different points along the performance curve.

Using the Curve for Selection

The process is straightforward but requires accurate data.

1. Calculate Your Required TDH: First, determine the Total Dynamic Head for your specific installation.
2. Determine Your Required Flow Rate: Decide the volume of water you need at the discharge point.
3. Find the Duty Point: Locate your required TDH on the y-axis and your required flow rate on the x-axis. The point where these two values intersect is your "duty point" or "operating point."
4. Check the Performance Curve: Verify if your duty point falls on or very close to the pump's performance curve line.
5. Optimize for Efficiency: Ideally, your duty point should be as close as possible to the pump's Best Efficiency Point (BEP).

By mastering the use of pump performance curves, you move from a salesperson to a technical consultant.

You can confidently recommend a 0.75 kW pump for an 80-meter head application, knowing it will deliver a specific, predictable flow rate.

This level of precision is what differentiates a professional from an amateur.

The Impact of Well Diameter and Pump Size

Have you ever tried to fit a pump into a borehole that's too narrow?

It's a frustrating and costly mistake that can halt a project.

Proper planning requires matching pump diameter to the well casing.

While a 0.75 kW motor is relatively small, the "wet end" or pump body it's attached to comes in different diameters.

Common sizes include 3-inch and 4-inch models.

A 4-inch pump will not fit in a 4-inch casing; it requires a casing with a larger internal diameter (e.g., 5 inches) to allow for water flow and cooling.

The physical dimensions of the pump are just as critical as its hydraulic performance.

An incorrectly sized pump can lead to a host of problems, from installation difficulties to overheating and premature failure.

The space between the pump and the well casing, known as the annulus, is essential for proper motor cooling.

Insufficient clearance can cause the motor to overheat, drastically reducing its service life by up to 50% or more.

Let's examine the technical considerations for ensuring a perfect physical fit.

Matching Pump to Casing

The nominal diameter of a pump (e.g., 4 inches) refers to its widest point.

The well casing, however, is measured by its internal diameter (ID).

There must be adequate clearance to prevent the pump from getting stuck and to ensure sufficient water flow past the motor for cooling.

Most manufacturers recommend a minimum clearance to guarantee performance.

Annular Flow and Motor Cooling

Submersible motors are designed to be cooled by the water flowing past them.

This flow is directed into the pump intake.

If the pump fits too snugly inside the casing, this cooling flow is restricted.

The heat generated by the motor cannot dissipate effectively.

This leads to a rapid increase in motor winding temperature, which can cause the thermal overload protection to trip or, in worst-case scenarios, lead to permanent motor burnout.

A minimum flow velocity of around 0.15 meters per second past the motor is often recommended by manufacturers for effective cooling.

Note: These are general recommendations. Always consult the specific manufacturer's installation manual.

When to Use a Cooling Shroud

In situations where the well diameter is much larger than the pump diameter (e.g., a 4-inch pump in an 8-inch well), the water velocity past the motor may be too low for adequate cooling.

In these cases, a "cooling shroud" or "flow sleeve" must be installed.

This is a simple pipe that fits over the pump and motor assembly.

It forces the water being pumped to first flow down the outside of the shroud and then up through the narrow space between the motor and the shroud, ensuring the required cooling velocity is achieved.

Failing to use a shroud in a large-diameter well is a common cause of motor failure, a mistake that is easily avoidable with proper technical knowledge.

Material Quality and Longevity in Borehole Pumps

Worried about pumps failing prematurely due to corrosion or wear?

Inferior materials can lead to frequent, expensive replacements.

This hurts your bottom line and your reputation.

The longevity of a 0.75 kW borehole pump is directly tied to the quality of its construction materials.

Pumps operating in aggressive water with high sand content or corrosive elements require robust materials like stainless steel.

Using a pump with a cast iron body in acidic water can lead to failure in less than half its expected lifespan.

Investing in higher-quality materials is not an expense; it's a strategic decision that pays dividends in reliability and customer satisfaction.

A pump is only as strong as its weakest component.

For B2B importers and distributors like Andrew, providing a product that lasts is paramount.

A pump that fails after two years reflects poorly on your brand, whereas one that operates flawlessly for a decade builds loyalty.

Let's break down the critical components and the materials that define their durability.

Key Components and Material Choices

A borehole pump consists of two main parts: the "wet end" (the pump itself) and the motor.

Each has components exposed to different stresses.

• Pump Casing and Discharge Head: This is the outer shell. Stainless steel (like grades 304 or 316) offers excellent corrosion resistance compared to cast iron. Grade 316 SS is superior for water with higher chloride content.
• Impellers and Diffusers: These are the internal parts that move the water. They experience high velocity and abrasion.
  • Noryl (a type of thermoplastic): Cost-effective and good for clean water. However, it wears quickly in sandy conditions.
  • Stainless Steel: Offers superior abrasion and corrosion resistance, significantly increasing the pump's lifespan in harsh conditions. A pump with stainless steel impellers can last 3-5 times longer in sandy wells than one with plastic impellers.
• Motor Housing: Almost universally made from stainless steel to protect the motor windings from water ingress and corrosion.
• Shaft and Couplings: Must be high-strength stainless steel to transmit torque from the motor to the impellers without failing.

The Importance of Stainless Steel Grades

Not all stainless steel is created equal. The grade is critical.

• AISI 304 Stainless Steel: This is the industry standard. It provides excellent corrosion resistance for most general water applications. It is suitable for water with a pH between 6.5 and 8.5.
• AISI 316 Stainless Steel: This grade contains molybdenum, which significantly increases its resistance to chlorides and other corrosive chemicals. It is the preferred choice for brackish water, coastal installations, or water with industrial contamination.

By understanding and specifying the right materials, you provide a tangible benefit to your customers.

You can confidently sell a solution, not just a product.

Explaining why a full SS 304 construction is worth the extra investment for a particular application demonstrates expertise and builds lasting trust.

This technical knowledge is a powerful tool in a competitive B2B market.

Conclusion

A 0.75 kW pump's depth is not a single number.

It depends on a calculated balance of head, flow, and system efficiency.

Master these details for optimal pump selection.

Frequently Asked Questions

What is the difference between a 0.75 kW and a 1HP pump?

They are essentially the same. One horsepower (HP) is approximately equal to 0.746 kilowatts (kW), so 0.75 kW is the standard metric equivalent for a 1 HP motor rating.

Can I use a 0.75 kW pump for a shallow well?

Yes, but it may be oversized. Using a pump that is too powerful for the required head and flow will cause it to operate away from its BEP, increasing energy use and wear.

How does pipe size affect the pump's performance?

A smaller pipe increases friction loss. This adds to the Total Dynamic Head (TDH), forcing the pump to work harder and reducing the overall flow rate at the outlet.

What happens if my well runs dry?

Most modern borehole pumps should be installed with dry-run protection. This sensor shuts off the pump if the water level drops below the pump intake, preventing motor burnout.

How long should a 0.75 kW borehole pump last?

A quality pump, properly selected and installed in a suitable application, can last from 8 to 15 years. Lifespan is heavily influenced by water quality and operating hours.

Is a 3-phase motor better than a single-phase motor?

For a 0.75 kW pump, both are common. Three-phase motors are generally more efficient and have a longer service life but require a three-phase power supply, which is not always available.

Can I install a borehole pump myself?

It is not recommended for non-professionals. Proper installation involves complex electrical wiring, plumbing, and setting the pump at the correct depth. Incorrect installation a common cause of premature failure.
