What Is a Solar Pump & How Does It Work?

Needing water in a remote location without grid power is a major challenge.

Fuel-powered pumps are expensive to run and maintain.

Solar-powered water pumps offer a reliable and sustainable solution.

A solar-powered water pump works by using solar panels to convert sunlight into DC electricity. This electricity powers a pump motor, via a controller, to move water from a source. For pumps requiring AC power, an inverter is used to convert the DC electricity.

This simple yet powerful technology is changing how we access water in off-grid locations.

It eliminates the reliance on expensive fuels and inconsistent power grids.

Understanding the components and their functions is key to designing an efficient system.

Let's explore the inner workings of these systems, their benefits, and how to select the right one for your needs.

Understanding the Core Components

A solar pump system might seem complex at first glance.

Misunderstanding its parts can lead to poor system design and inefficiency.

Let's break down each essential component to see how they work together seamlessly.

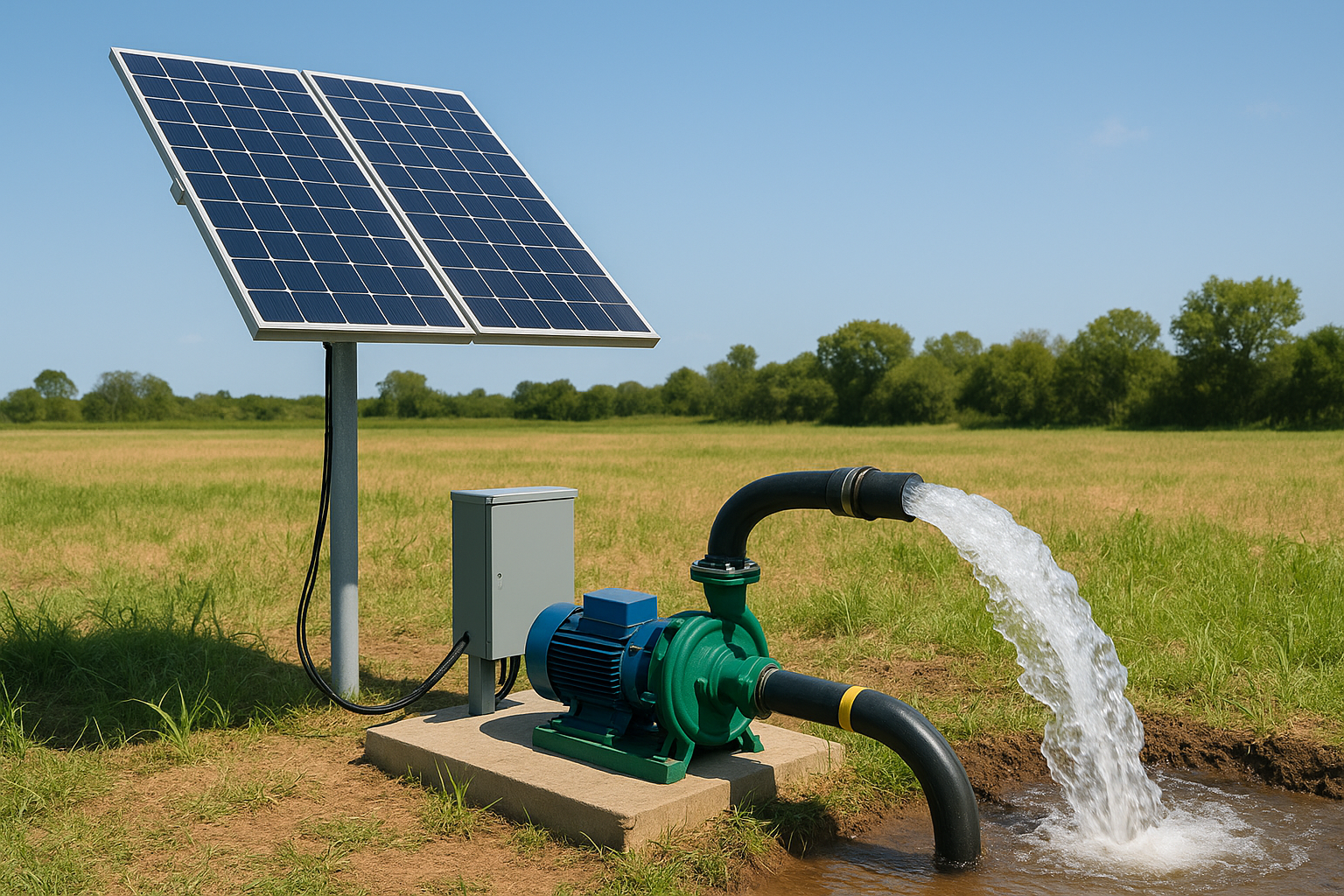

A solar pump system has three primary components: the solar panels (PV array), a pump controller, and the water pump motor. Ancillary parts like inverters, pipes, and storage tanks can be added to complete the system based on specific requirements.

To design robust and cost-effective pumping solutions, a deep understanding of each component's role and interaction is crucial.

This knowledge allows for proper sizing, optimal performance, and long-term reliability.

We will now examine each part in detail, from the energy source to the final water output.

The Photovoltaic (PV) Array

The photovoltaic (PV) array is the system's power plant.

It is composed of one or more solar panels.

Each panel contains solar cells, typically made from silicon.

When sunlight (photons) strikes these cells, it creates an electric field, generating direct current (DC) electricity.

The size of the PV array, meaning the number and wattage of the panels, is determined by the pump's power requirement and the amount of solar irradiation (Peak Sun Hours) available at the location.

These panels are incredibly reliable.

Most manufacturers offer a 25-year power output warranty, with a life expectancy often exceeding 30 years.

They function effectively in both hot and cold climates, making them suitable for global deployment.

For maximum efficiency, panels should be oriented to face the sun for the longest possible duration each day.

The Pump Controller

The controller is the brain of the solar pump system.

It is an electronic device that sits between the solar panels and the pump motor.

Its primary function is to manage the power from the PV array.

It optimizes the power output and protects the pump.

Because solar power fluctuates with cloud cover and time of day, the controller ensures the pump operates efficiently even in low-light conditions.

One key feature is Maximum Power Point Tracking (MPPT).

MPPT constantly adjusts the electrical operating point of the panels to extract the maximum available power.

Controllers also provide crucial protection features.

They can prevent the pump from motor damage if the water source runs dry (dry-run protection).

They also protect against overvoltage and reverse polarity.

Many controllers include inputs for sensors, such as float switches in a storage tank, to automate the system by turning the pump off when the tank is full.

The Water Pump Motor

The water pump is the component that does the physical work of moving water.

These pumps are specifically designed to operate on DC electricity from solar panels.

They must be able to start and run effectively even when the input power is low, without stalling or overheating.

The two main motor types used are brushed and brushless DC motors.

Brushless DC motors are more common in modern systems.

They are more efficient, have a longer lifespan, and require less maintenance because they have no brushes to wear out.

The pump itself can be one of several types, which we will discuss later.

The choice of pump depends on the application, such as the required water volume and the vertical distance the water needs to be lifted.

Ancillary Components

Several other components can be included to enhance a solar pumping system.

What Are a Solar Pump's Key Benefits?

Traditional pumps come with high and unpredictable operating costs.

Volatile fuel prices and frequent maintenance create financial and logistical burdens.

Solar pumps provide significant long-term economic, environmental, and operational advantages.

Solar pumps are highly economical to operate, eco-friendly, and extremely reliable. They are perfect for remote areas without grid power and require very little maintenance, which boosts productivity by ensuring a consistent water supply.

These benefits make solar pumping a superior choice for a wide range of applications, from agriculture to community water supply.

The technology is not just an alternative; it is an upgrade.

It empowers users with energy independence and a stable, low-cost water source.

Let's delve deeper into the specific advantages that make this technology so compelling.

Economic Advantages

The primary economic benefit is the near-zero operating cost.

Once installed, the sun provides the energy for free.

This eliminates the ongoing expense of diesel, petrol, or grid electricity.

The initial investment for a solar pump system has decreased dramatically in recent years.

The falling cost of photovoltaic (PV) panels makes the upfront capital expenditure more manageable.

When evaluated over the system's lifespan, the total cost of ownership is significantly lower than that of fossil fuel-powered pumps.

The long-term savings on fuel and maintenance quickly offset the initial setup cost.

This makes solar pumps a sound financial investment, especially for commercial applications like agriculture where water pumping constitutes a major operational expense.

The reliability of the system also prevents costly downtime associated with fuel shortages or mechanical failures of engine-driven pumps.

Environmental Impact

Solar pumps operate on clean, renewable energy.

They produce no greenhouse gas emissions or other pollutants during operation.

This helps reduce the carbon footprint of water management activities.

It also eliminates localized air and noise pollution associated with diesel or petrol engines.

This creates a healthier environment for communities, livestock, and crops.

While the manufacturing of solar panels does have an environmental footprint, this is far outweighed by the decades of clean energy production that follow.

By replacing fossil-fuel-burning engines, solar pumps play a direct role in combating climate change.

They also reduce reliance on fuelwood and charcoal for energy, which contributes to deforestation and habitat loss in many developing regions.

Operational Reliability and Maintenance

Solar pumping systems are known for their exceptional reliability.

They have very few moving parts compared to combustion engines.

PV panels are solid-state devices with no moving parts and are warrantied for 25 years.

Brushless DC motors, common in modern pumps, are also highly durable and require minimal servicing.

This low-maintenance nature is a huge advantage in remote or hard-to-reach locations.

It reduces the need for specialized technicians and the logistical challenges of transporting spare parts and fuel.

The system's simplicity means local users can often be trained to perform basic upkeep.

This reliability ensures a consistent water supply, which is critical for crop irrigation cycles, livestock health, and domestic use.

Suitability for Remote Locations

Solar pumps are a perfect solution for off-grid areas.

They are completely self-sufficient and do not require any external power infrastructure.

This makes it possible to provide water for irrigation, livestock, or entire communities in places far from the electrical grid.

Farmers in remote areas no longer have to depend on unreliable rainfall or labor-intensive methods like buckets.

The PV array can even be placed several hundred feet away from the pump itself.

This allows for flexible installation, ensuring the panels are in the sunniest location while the pump is at the water source.

Installation is also straightforward and does not typically require heavy machinery, making deployment in difficult terrain feasible.

Exploring Different Types of Solar Pumps

Not all water pumping needs are the same.

Choosing the wrong pump type can lead to poor performance, inefficiency, or premature system failure.

Understanding the key differences is essential for selecting the perfect pump for your application.

Solar pumps are mainly categorized by their function (submersible vs. surface) and the type of electrical current they use (AC vs. DC). Submersible pumps operate underwater in wells, while surface pumps are installed on the ground.

The choice between these types depends entirely on the water source and the specific requirements of the job.

A deep well requires a completely different solution than pumping water from a river to a nearby field.

Let's examine these classifications to help you make an informed decision for your project.

Based on Function: Submersible vs. Surface Pumps

The most fundamental classification is based on where the pump is placed.

Submersible Pumps are designed to be fully submerged in water.

They are used to extract water from deep wells or boreholes.

The entire unit, comprising the pump and motor, is lowered into the water source.

This design is highly efficient because it pushes water to the surface rather than pulling it.

It avoids the suction lift limitations that surface pumps face.

Submersible pumps are the standard choice for any application requiring water to be lifted from depths greater than about 20 feet (6 meters).

Surface Pumps are installed on the ground, at or near the water's surface.

They work by drawing water through a suction pipe from a shallow source like a river, lake, pond, or shallow well.

While their suction lift is limited (typically to less than 20 feet), they can be very effective at pushing water over long distances or uphill once it is in the pump.

Surface pumps are generally less expensive than submersible pumps and are easier to access for maintenance.

Based on Current: AC vs. DC Pumps

Solar pumps can also be differentiated by the type of electrical current their motors use.

DC (Direct Current) Solar Pumps are designed to run directly off the DC power produced by solar panels.

These systems are generally more efficient because they avoid the power conversion losses associated with an inverter.

The wiring is also simpler.

DC pumps with brushless motors are very common, especially in small to medium-sized applications.

They offer excellent reliability and a long service life.

The system typically consists of solar panels, a DC pump, and a controller.

AC (Alternating Current) Solar Pumps use a standard AC motor.

Since solar panels produce DC power, an inverter is required in the system.

The inverter converts the DC electricity from the panels into AC electricity to power the pump.

This setup can be advantageous in certain situations.

For instance, if a large, high-capacity AC pump is needed, or if an existing AC pump is being converted to solar power.

AC motors are widely available and can sometimes be more cost-effective for very large-scale pumping operations.

The trade-off is the added cost and complexity of the inverter and a small loss in overall system efficiency due to the power conversion process.

The development of highly efficient DC pump systems, however, has made them the preferred choice for most new solar pumping installations.

Common Applications for Solar Pumping Systems

You may be wondering exactly where solar pumps can be used.

Overlooking their versatility means missing out on opportunities for efficient water management.

Let's discover the wide range of practical, real-world applications for this technology.

Solar pumps are extremely versatile. They are widely used for agricultural crop irrigation, livestock watering, and supplying water to off-grid homes. They also excel in community water systems, swimming pool circulation, and decorative water features.

The ability to operate independently a power grid makes solar pumps invaluable across numerous sectors.

Their scalability allows them to be used for everything from a small garden to a large commercial farm.

Let's explore some of the most common and impactful uses.

Agricultural Use

Agriculture is the largest consumer of fresh water globally.

Solar pumps are revolutionizing irrigation for small farms, orchards, vineyards, and large-scale crop production.

They provide a reliable water supply that is not dependent on rainfall or the cost of fuel.

This allows farmers to increase their number of harvests per year, improving food security and income.

Key agricultural applications include:

• Crop Irrigation: Pumping water from wells, rivers, or ponds to water fields. The system can be paired with efficient methods like drip irrigation to maximize water usage.
• Greenhouse Watering: Providing a consistent water supply for commercial greenhouses that grow flowers, vegetables, and other plants.
• Flood Control: In some cases, pumps can be used to remove excess water from fields after heavy rainfall.

Residential and Community Supply

For homes, villages, and clinics beyond the reach of municipal water lines, solar pumps are a lifeline.

They can supply clean water for all domestic needs.

• Pumping Well Water: A solar submersible pump can draw water from a well and fill a storage tank. This water can then be gravity-fed or sent through a booster pump to pressurize the home's water lines.
• Community Water Systems: Larger systems can supply water for an entire village. The pump can fill a large, elevated central tank, from which water is distributed to multiple points of use.
• Water Purification: Solar pumps can power water treatment and filtration systems, providing safe drinking water to communities.

Livestock Watering

In the ranching industry, providing water for cattle and other livestock across vast, remote rangelands is a major challenge.

Solar pumps offer an ideal solution.

Ranchers can install pumps at scattered water sources to fill troughs.

This ensures animals have constant access to water without the need to transport it or maintain fuel-powered pumps in remote locations.

Some ranchers use portable solar pump systems that can be moved between different wells or water sources as herds rotate through pastures.

This improves land management and animal health.

Specialized Uses

The application of solar pumps extends beyond basic water supply.

Their clean, free energy makes them ideal for a variety of other uses.

• Swimming Pools: A solar pool pump can circulate and filter water during the day, drastically reducing a home's electricity bill.
• Fountains and Water Features: Solar pumps are perfect for powering decorative ponds, waterfalls, and fountains in gardens and public spaces, adding aesthetic value without ongoing energy costs.
• Aquaponics and Hydroponics: These systems rely on circulating nutrient-rich water. A small, reliable solar pump is a perfect fit for off-grid or eco-friendly growing operations.
• Rainwater Collection: A solar pump can be used to move collected rainwater from a cistern to a storage tank or garden for later use.

How to Select the Right Solar Pump System?

Designing a solar pump system can seem like a daunting task.

A poorly sized system will be inefficient, ineffective, and a waste of money.

A careful and systematic design approach ensures you get optimal performance and value.

To select the right pump, first calculate your total daily water requirement and the total vertical distance the water must be lifted (Total Dynamic Head). These two key figures will determine the necessary flow rate and the correct pump and PV array size.

Sizing a solar pumping system is like fitting a custom suit; all the measurements must be precise.

It is a process of matching the water need with the available solar resource and the pump's capabilities.

Let's walk through the fundamental steps of designing a system that meets your specific needs.

Step 1: Calculate Your Daily Water Demand

The first and most important step is to determine how much water you need per day.

This figure will be the foundation for all other calculations.

Be as accurate as possible. It is better to slightly overestimate than to underestimate your needs.

Consider the requirements for all intended uses:

• Domestic Use: Calculate gallons per person per day (for drinking, cooking, bathing).
• Livestock: Gallons per head per day, which varies by animal type.
• Irrigation: Gallons per acre or per plant, which depends on the crop type, soil, and climate.

Sum these figures to get your total requirement in Gallons per Day (GPD) or Liters per Day (LPD).

Step 2: Determine Total Dynamic Head (TDH)

Total Dynamic Head (TDH) is the total equivalent height that water must be lifted.

It accounts for not just the vertical lift but also the friction losses in the piping system.

TDH is calculated as:

TDH = Vertical Lift + Friction Loss

• Vertical Lift: This is the vertical distance from the water level at the source (e.g., the water level in your well) to the final discharge point (e.g., the top of your storage tank).
• Friction Loss: As water moves through pipes and fittings, it encounters friction, which is equivalent to adding more height to lift. This loss depends on the pipe diameter, length, and flow rate. You can find friction loss tables online or provided by pipe manufacturers.

Accurately calculating TDH is critical because it determines how hard the pump must work.

Step 3: Calculate the Required Flow Rate

With solar pumping, we typically pump all the water needed for the day during the available hours of sunlight.

The flow rate is determined by dividing your total daily water demand by the number of "Peak Sun Hours" at your location.

A Peak Sun Hour is an hour during which the intensity of sunlight is 1,000 watts per square meter.

You can find maps and tables of Peak Sun Hours for your specific region and season.

The formula is:

Flow Rate (Gallons per Hour) = Total Daily Water Demand (GPD) / Peak Sun Hours per Day

This gives you the minimum flow rate your pump must achieve at the calculated TDH.

Step 4: Select the Pump and PV Array

Now you have the two critical pieces of information: the required Flow Rate and the Total Dynamic Head (TDH).

With these figures, you can consult the performance charts provided by pump manufacturers.

These charts show how much water a specific pump model can deliver at various head levels.

Find a pump that meets or exceeds your required flow rate at your calculated TDH.

The same performance chart or specification sheet will then tell you the size of the PV array (in Watts) required to power that pump under those conditions.

This ensures that the solar panels, controller, and pump are all perfectly matched for an efficient and reliable system.

Conclusion

Solar pumps offer a powerful, reliable, and sustainable solution for water management.

They are especially transformative in off-grid areas.

This technology empowers agriculture and communities with water independence.

FAQs

Can a solar pump work without a battery?
Yes. Most systems pump water into a storage tank during sunny hours. The stored water is then available 24/7, making batteries unnecessary for most applications.

How long does a solar water pump last?
Solar panels often have a 25-year warranty, and the pump motors are designed for many years of reliable service. The overall system life expectancy is very long.

What are the disadvantages of a solar water pump?
The main disadvantages are the initial investment cost and the dependence on sunlight. However, costs have fallen, and water storage tanks easily solve the intermittency issue.

Can a solar pump run at night?
A solar pump can only run at night if the system includes a battery bank to store energy. This adds significant cost and complexity to the system.

How deep can a solar pump pull water?
This varies greatly by pump model. Smaller pumps can lift water from over 200 feet (65 meters), while larger, more powerful systems are designed for much deeper wells.

What is the difference between a solar pump and a normal pump?
The primary difference is the power source. A solar pump uses DC electricity generated by solar panels, while a "normal" pump typically runs on AC electricity from the grid.

How much does a solar water pump system cost?
The cost depends on the required water volume, the well depth (head), and the specific components chosen. Systems can range from a few hundred to many thousands of dollars.

What is the main function of a solar pump controller?
The controller manages power from the panels to the pump. It enables soft starts, maximizes power output (MPPT), and protects the pump from damage like dry-running or overvoltage.
