What Makes an Inverter Booster Pump the Smart Choice for Your Home?

Tired of weak showers and trickling taps?

Low water pressure disrupts your daily routine and causes constant frustration.

An inverter booster pump is a modern solution that delivers strong, constant water pressure throughout your home.

It intelligently saves energy and operates so quietly you'll barely notice it's there.

But how does this technology actually improve your home's water system, and what makes it different from older pumps?

It’s about more than just boosting pressure; it’s about providing an intelligent, efficient, and reliable water supply.

Understanding the mechanics and benefits of these advanced systems reveals why they are becoming a necessity for modern homes.

Let's explore the details of what makes these pumps a superior choice.

What Is a Water Booster Pump?

Frustrated with low water pressure, especially on upper floors?

Your plumbing might need some help to deliver water effectively against gravity.

A water booster pump is a motor-driven device installed on your main water line.

It is designed to increase water flow and pressure, solving issues caused by gravity or long pipe distances.

A water pressure booster pump takes the existing water flow and accelerates it.

This ensures a strong and steady stream from every faucet and showerhead in your home.

It can be connected directly to your water supply line.

Alternatively, it can pump water from a storage tank, a well, or even a local pond.

The main purpose is to combat low water pressure.

This issue often occurs when water needs to travel long distances or fight against gravity.

For example, a weak shower on the second floor is a common problem.

The faucet is far from where water enters the house, and the water must be pushed upward.

A water booster pump effectively counterbalances these factors to deliver consistent pressure.

They are also incredibly useful if your home is supplied by city water that arrives with insufficient pressure.

Beyond Simple Boosting: The Smart Pump Advantage

While all booster pumps increase pressure, modern inverter pumps do it intelligently.

Traditional pumps operate on a simple on/off basis, running at full power or not at all.

An inverter pump, also known as a Variable Speed Drive (VSD) pump, adjusts its motor speed in real-time.

This smart adjustment ensures you get the exact pressure you need, no more and no less, which saves a significant amount of energy.

Common Scenarios Where a Booster Pump is Needed

You may benefit from a booster pump in several common situations.

• Your home receives city water, but the incoming pressure is consistently low.
• You have a large family or multiple appliances that often use water simultaneously.
• Your water comes from a private well with a storage tank, and you need to pressurize the water from that tank.
• The existing well pump struggles to meet your household's demand.
• Showers and faucets on the upper levels of your home have noticeably poor water pressure.
• You use a rain-harvesting system and need to move water without relying on gravity alone.

How Does a Booster Pump Work?

Wondering how a compact device can fix your entire home's water pressure?

The mechanics are surprisingly clever and efficient.

A booster pump uses a spinning part called an impeller to draw water in and push it out with more force.

An inverter model intelligently adjusts the impeller's speed to maintain constant pressure.

At its core, a water booster pump is a centrifugal pump.

It draws water in through an inlet.

Inside the pump, a motor spins an impeller, which is a fan-like series of blades.

The rapid spinning of the impeller forces the water outward at a high velocity, increasing its pressure.

This pressurized water then exits the pump through an outlet and flows into your home's plumbing system.

With a standard booster pump, you can enjoy better pressure when you turn on a faucet.

With an inverter booster pump, you can open multiple taps at once without a noticeable drop in pressure.

This is perfect for busy households, allowing you to take a shower while the dishwasher and washing machine are running.

The Role of the Variable Frequency Drive (VFD)

The Variable Frequency Drive, or VFD, is the "brain" of an inverter pump.

This sophisticated electronic controller monitors the pressure in your plumbing system using built-in sensors.

When you turn on a tap, the pressure drops slightly.

The VFD detects this change and instantly increases the motor's speed to compensate.

It provides just enough power to bring the pressure back to your desired setpoint.

This process happens continuously, resulting in a smooth and unwavering water flow.

Constant Pressure: The Main Goal

The primary benefit of a VFD is the delivery of constant pressure.

Traditional pumps are either on at 100% speed or completely off.

This can cause pressure fluctuations and put unnecessary stress on your plumbing.

An inverter pump, however, ramps its speed up and down smoothly based on demand.

If you only open one small faucet, the pump might run at just 20% of its capacity.

If you open multiple showers, it will ramp up to meet the demand.

This intelligent operation not only provides superior comfort but also achieves remarkable energy savings, often between 30% and 50% compared to fixed-speed pumps.

The Benefit of Quiet Operation

Another significant advantage of variable speed technology is quiet operation.

Because the pump rarely needs to run at its maximum speed, it produces far less noise.

Many advanced inverter pumps operate at levels below 50 decibels, which is as quiet as a refrigerator.

You no longer have to deal with a loud pump kicking on and off throughout the day.

This makes them ideal for installation inside or near living areas without causing a disturbance.

Parts of a Water Booster Pump

Knowing a pump's components helps you understand its quality, durability, and performance.

Let's look inside a modern pump.

Key parts include the inlet, impeller, outlet, and sensors.

Advanced inverter pumps also feature high-efficiency motors, intelligent controllers, and robust materials designed for long-lasting, reliable performance.

Understanding the anatomy of a water booster pump can help you appreciate its design and troubleshoot potential issues.

Here are the fundamental components found in most pumps, along with the advanced features that set high-quality inverter pumps apart.

Core Mechanical Components

• Inlet: This is the point where water enters the pump from your main supply line. It includes a check valve, which is a one-way valve that prevents pressurized water from flowing backward.

• Impeller: Often described as the heart of the pump, the impeller is a rotor with blades that spins at high speed. It is driven by the motor and is responsible for pressurizing the water.

• Outlet: After being pressurized by the impeller, water exits the pump through the outlet and re-enters your plumbing system to be distributed throughout the house.

Advanced Electronic and Structural Components

• Flow Sensor: A pressure or flow sensor is the pump's primary sensory organ. It constantly measures the water pressure or flow rate in the system, sending this information to the controller.

• Expansion Tank: Some booster systems include a small expansion tank. This tank holds a reserve of pressurized water, which helps reduce how often the pump needs to cycle on and off for small water uses, further extending its lifespan.

• Intelligent Controller: This is the brain of an inverter pump. It houses the Variable Frequency Drive (VFD) technology that processes data from sensors and adjusts the motor speed to maintain constant pressure.

The table below contrasts the components of a basic pump with those found in an advanced inverter model.

Types of Booster Pumps

Not all booster pumps are created equal.

The right type depends on your specific needs, property size, and performance expectations.

Pumps can be single-stage or multi-stage for different pressure needs.

The most advanced and efficient type is the variable-speed drive (VSD) or inverter pump, which offers superior performance and intelligent control for any home.

Choosing the right type of booster pump is crucial for achieving the desired results.

The main distinctions lie in their internal construction and their method of control.

Let's break down the most common types available for residential and commercial use.

Single-Stage and Multi-Stage Pumps

• Single-Stage Pump: This type of pump has one impeller. It is generally sufficient for boosting water pressure in a standard single-family home where the pressure increase needed is moderate.

• Multi-Stage Pump: This design uses multiple impellers arranged in a series. Each stage boosts the pressure further, making these pumps ideal for applications requiring very high pressure, such as tall buildings, hotels, or moving water over long distances.

The Game-Changer: Variable-Speed Drive (VSD) Pumps

The most significant innovation in recent years is the Variable-Speed Drive (VSD) booster pump, also known as an inverter pump.

Unlike their fixed-speed counterparts, VSD pumps can adjust their motor speed based on real-time water demand.

This constant adjustment provides perfectly stable water pressure, regardless of how many taps are open.

They are the pinnacle of efficiency, quiet operation, and comfort.

These pumps are especially beneficial for homes on well water, as they can provide consistent city-like pressure from a storage tank system.

Single vs. Dual-Pump Systems

For larger residences, villas, or small multi-family buildings (up to six stories and nine apartments), a dual-pump booster system offers enhanced reliability and performance.

These units are surprisingly compact, often 50% smaller than traditional systems with comparable output.

They operate with intelligent control modes to ensure system stability and longevity.

Intelligent Dual-Pump Operation Modes

• Automatic Alternating Operation: In this mode, the system designates one pump as the master and the other as the slave. The master pump runs to meet demand. The next time the system calls for water, the slave pump starts, becoming the new master. This sequential alternation ensures even wear and tear on both pumps.
• Timed Alternating Operation: This mode allows you to set a specific time interval (in hours). The master and slave pumps will automatically switch roles after the set time has elapsed, providing another method to balance their operational lifespan.

Do I Need a Water Booster Pump?

Still unsure if a booster pump is the right solution for you?

Reviewing a few common household water issues can provide a clear answer.

You likely need a booster pump if you suffer from low city water pressure, use a well, or experience weak flow on upper floors.

It is also an ideal upgrade for modern homes with multiple water-using appliances.

Several tell-tale signs indicate that your home could benefit from a water pressure booster pump.

If you recognize any of the issues below, installing a booster pump could dramatically improve your daily life.

Diagnosing Your Water Pressure Problem

First, try to identify the specific nature of your pressure problem.

Is the pressure low everywhere in the house, or just in certain areas like an upstairs bathroom?

Does the pressure drop significantly when someone flushes a toilet or when the washing machine is running?

Answering these questions can help confirm that a booster pump is the right solution.

Here are the most common reasons homeowners choose to install one:

• You have city water that enters your home with low pressure.
• You have many people or appliances using water at the same time in your home.
• You have well water with a storage tank and need to pressurize the water from the tank.
• Your well pump can’t keep up with the demand in your home, or you see signs of well pump failure.
• The showers and faucets on upper levels of your home have poor water pressure.
• You have a rain-harvesting tank or a pond that you’d like to use for irrigation.

The table below shows how a modern inverter pump addresses these common problems.

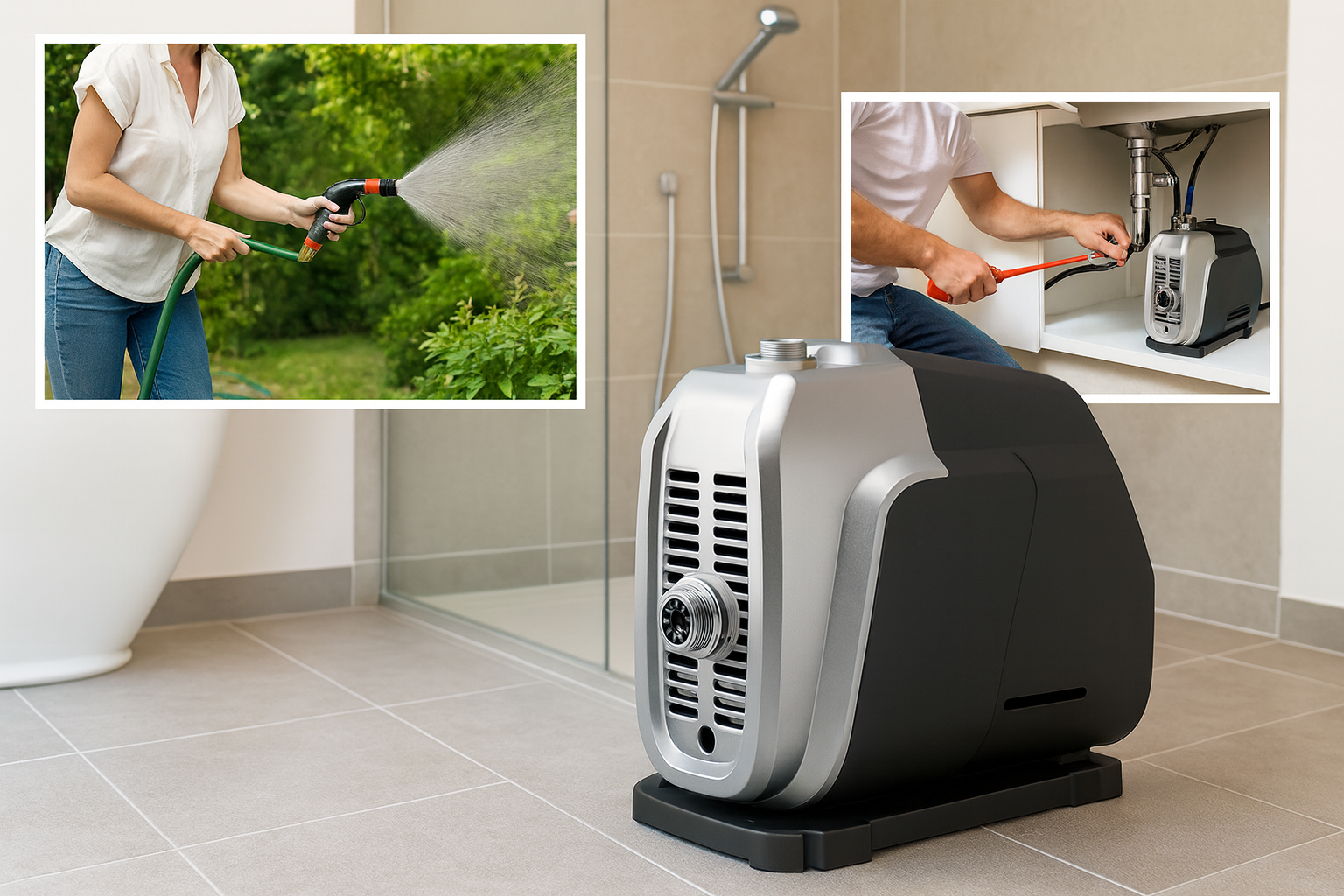

Beyond the Home: Other Applications

While this guide focuses on home use, the versatility of inverter booster pumps makes them suitable for a wide range of applications.

Their efficiency and reliability are highly valued in:

• Gardening and Irrigation: Providing consistent pressure for sprinkler systems and long hoses.
• Agricultural Irrigation: Supplying water to crops over large areas.
• Commercial Buildings: Ensuring adequate water pressure across multiple floors in offices and apartments.
• Light Industrial Use: Supporting processes that require a stable water supply.

Water Pressure Booster Pump Cost

Worried about the cost of solving your water pressure problems?

An investment in the right pump can pay for itself through energy savings and durability.

Basic booster pumps can cost from $60 to $300.

Advanced inverter pumps have a higher initial cost but provide significant long-term savings through lower energy bills and reduced maintenance.

The cost of a water pressure booster pump varies widely based on its capacity, type, and features.

A basic, small pump designed to boost pressure for a single fixture might cost as little as $80.

A whole-house booster pump that can handle up to 3 gallons per minute (GPM) typically ranges from $60 to $300.

Pumps for multi-story houses require more power and will naturally have a higher price tag than those for a small, single-story home.

However, the purchase price is only part of the story.

Understanding the Total Cost of Ownership

When evaluating cost, it is essential to consider the Total Cost of Ownership (TCO), not just the initial sticker price.

This includes the upfront cost, installation fees, and long-term operational costs like electricity and maintenance.

Advanced inverter VSD pumps may have a higher initial purchase price, but they are designed to be a more economical choice over their lifespan.

Long-Term Savings with Inverter Technology

• Energy Savings: This is the most significant financial benefit. By running the motor only as fast as needed, an inverter pump can reduce electricity consumption by 30% to 50% compared to a traditional fixed-speed pump. Over several years, these savings can offset the higher initial cost.

• Increased Lifespan: Inverter pumps experience less wear and tear. The soft-start feature prevents the mechanical shock of suddenly starting at full speed. The use of high-quality materials like stainless steel impellers, industrial-grade seals, and intelligent designs with superior heat dissipation all contribute to a much longer operational life.

• Reduced Maintenance: With fewer abrupt starts and stops and more durable components, these pumps require less maintenance over time, saving you money on service calls and replacement parts.

Ultimately, choosing a higher-quality inverter pump is an investment in reliability, comfort, and long-term financial savings.

How to Choose a Water Booster Pump

Selecting the right booster pump ensures optimal performance for your specific needs.

There are several key factors to consider before making a purchase.

Consider your home's size, typical water usage, and desired pressure level.

For the best performance, efficiency, and smart features, an inverter VSD pump with remote monitoring capabilities is the leading choice for modern homes.

Choosing the perfect water booster pump involves more than just picking one off the shelf.

You need to match the pump's capabilities to your home's unique requirements.

A professional plumber can provide an expert assessment, but understanding the key considerations will empower you to make an informed decision.

Key Performance Specifications to Check

• Flow Rate (GPM/LPM): This measures how much water the pump can move in a given amount of time. You need to estimate your household's peak water usage. Add up the flow rates of all fixtures and appliances that might run simultaneously to determine your required flow rate.

• Pressure (PSI/Bar): Consider your existing water pressure and your desired water pressure. The difference between these two numbers is the amount of "boost" the pump needs to provide.

• Motor Type: The motor is the engine of the pump. For maximum energy efficiency and longevity, look for models with an IE5-rated Permanent Magnet Synchronous Motor. This is the highest standard for motor efficiency currently available.

The Power of Smart Control and Protection

Modern inverter pumps offer a suite of intelligent features that enhance both performance and reliability.

• Built-in Protections: High-quality pumps include comprehensive protection functions to safeguard against common issues. Look for a pump with at least 14 protection features, including safeguards against water shortage, overcurrent, overvoltage, and overheating. This ensures the pump will last for years.

• Wi-Fi Connectivity and Remote Control: The ability to monitor and control your pump remotely is a powerful feature. Systems that connect to apps like SmartLife allow you to use your smartphone to:

  • Set target start and stop pressures.
  • Manually start or stop the pump.
  • Monitor water temperature.
  • View real-time operating pressure, status, and power consumption.
  • Check the motor speed, input voltage, and accumulated run time.

This level of control and visibility provides peace of mind and makes managing your home's water system easier than ever.

Consult a Professional

If you feel overwhelmed by the technical details, don't hesitate to contact a local plumbing professional.

An experienced plumber can accurately assess your home's needs, recommend the perfect pump for your situation, and ensure it is installed correctly for safe and efficient operation.

Conclusion

An inverter booster pump is a smart investment for any modern home.

It delivers constant water pressure, saves significant energy, and offers quiet, reliable operation for years to come.

Frequently Asked Questions

What is the difference between a water pump and a booster pump?

A standard water pump moves water from one place to another, like from a well to a tank. A booster pump increases the pressure of water that is already flowing in a line.

Can a booster pump be too powerful?

Yes, a pump that is too powerful can create excessive pressure, potentially damaging your pipes and fixtures. It's important to choose a pump correctly sized for your home's plumbing system.

How long do water booster pumps last?

The lifespan of a water booster pump can range from 5 to 10 years or more. High-quality inverter pumps with durable materials and smart controls often last longer due to reduced wear.

Do water booster pumps use a lot of electricity?

Traditional pumps can be energy-intensive. However, modern inverter (VSD) pumps are highly efficient, adjusting their speed to demand and saving up to 30-50% on electricity costs.

Where should a booster pump be installed?

A booster pump is typically installed on the main water line just after the water meter or the pressure tank for a well. This placement ensures the whole house benefits from the increased pressure.

Does a water booster pump run all the time?

No. A booster pump only runs when there is a demand for water. Inverter pumps are even smarter, adjusting their speed rather than just turning on and off, which saves energy.

What pressure should my booster pump be set at?

Most residential plumbing systems operate best between 40 and 60 PSI. Your pump should be set to maintain a comfortable pressure within this range without exceeding the limits of your pipes.

Can I install a water booster pump myself?

While some homeowners with plumbing experience may be able to install a pump, it is generally recommended to hire a professional plumber. This ensures the installation is done correctly and safely.
