The Ultimate Guide to Booster Pressure Pumps: 5 Essential Questions Answered?

Tired of weak showers and slow-filling faucets? Low water pressure disrupts daily life. A smart booster pressure pump is the perfect solution to provide the constant, powerful water flow you need.

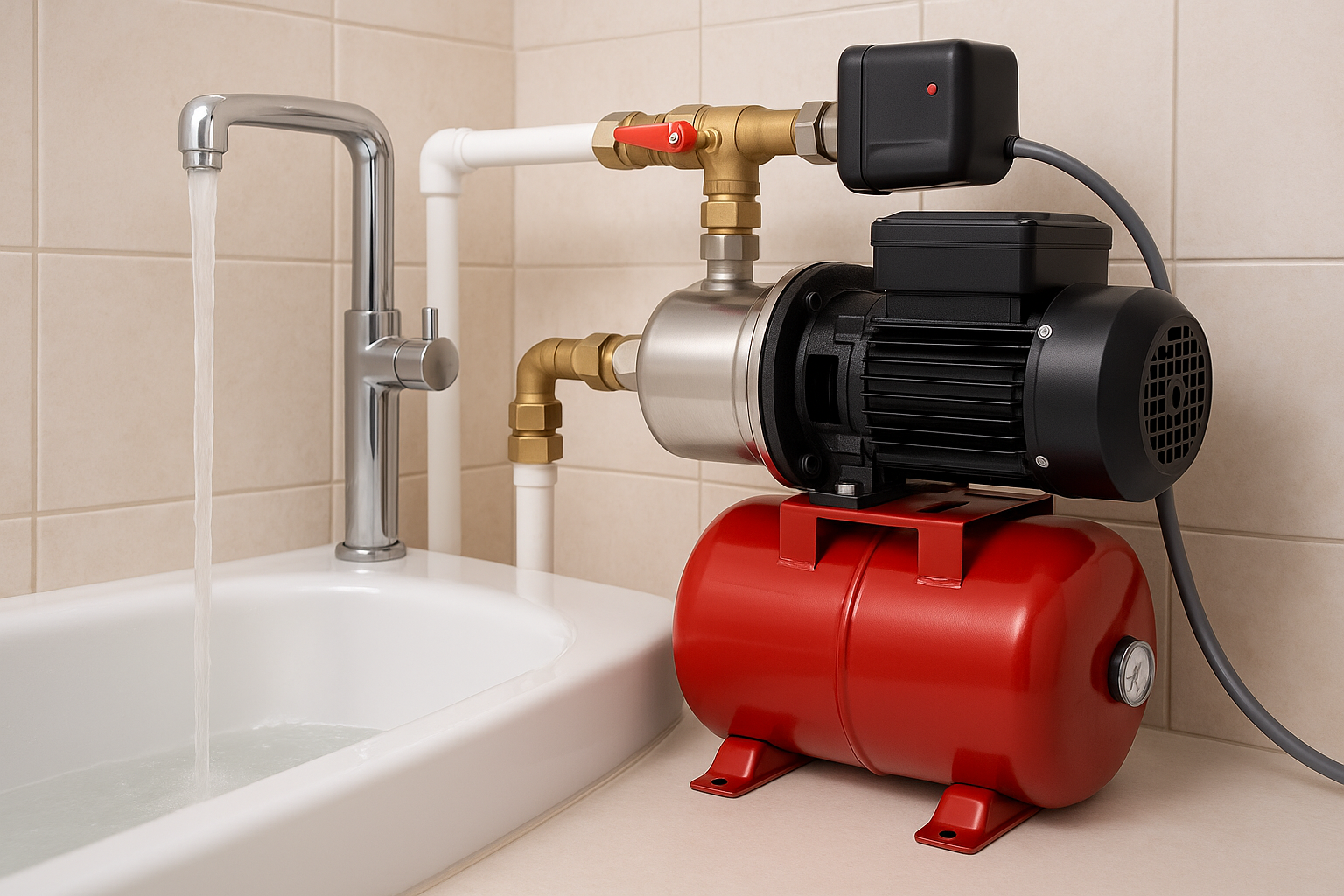

A booster pressure pump is a device that increases the pressure of water coming from a source. It is used when the existing pressure from the city supply or a well is insufficient for your needs, ensuring a strong, consistent flow to all outlets in a building.

I've spent over a decade in Taizhou, China, manufacturing water pumps at RAFSUN. Over the years, I've seen that customers from all over the world, whether it's a distributor like Leon in South Africa or an importer in Australia, have the same fundamental questions. They want to understand the technology before they invest in it for their
markets. So, let’s break it all down, starting with the very basics. This will help you make a smart choice for your business or property.

First things first, what exactly is a booster pressure pump?

Confused by all the technical jargon? You see terms like "booster" and "VSD" but aren't sure what it means for you. I'll explain it simply so you can understand its core function.

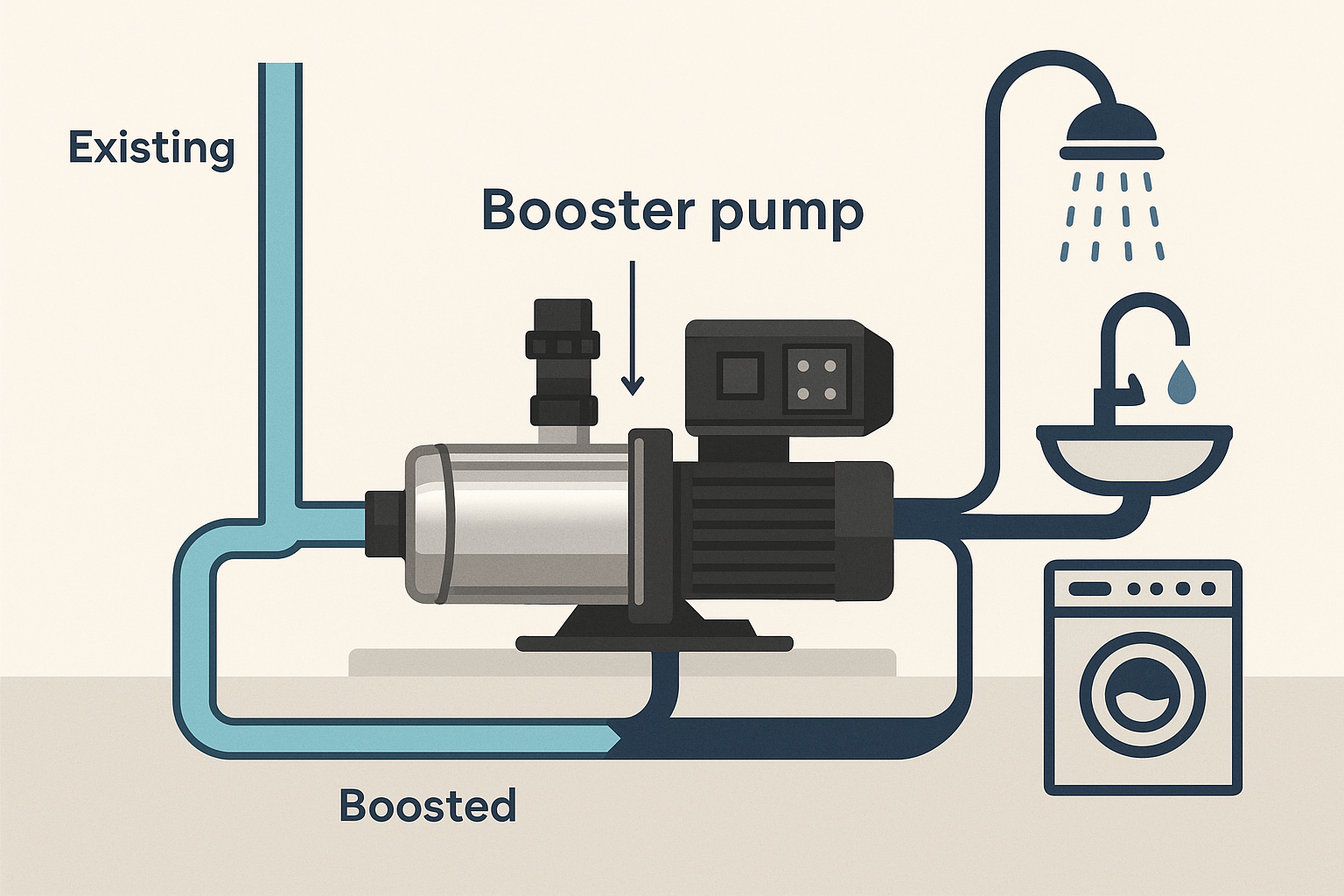

A booster pressure pump is a pump that takes existing water flow and increases its pressure. It works with your current water system, not as a standalone source, to "boost" the pressure to a desired level for better performance in showers, taps, and appliances.

A booster pressure pump is an amplifier, not a source of water. Think of it like a turbocharger for your car's engine. The turbocharger doesn't create fuel; it uses the existing exhaust gas to force more air into the engine, making it more powerful. Similarly, a booster pump doesn't create water. It takes the water already flowing from your city main or storage tank and gives it a powerful push, increasing its force, or pressure. It is typically installed on the main water line right after the water meter or after a water storage tank.

The magic of a modern booster pressure pump isn't just in the raw power, but in its intelligence.

How a Modern Booster Pressure Pump Works

At its heart, any pump has a motor that spins an impeller. The impeller is a rotor with vanes that spins at high speed, using centrifugal force to throw water outwards. This fast-moving water is then channeled through the pump casing, which converts the high speed into high pressure.

What makes our RAFSUN pumps different is the technology that controls the motor. We use two key things:

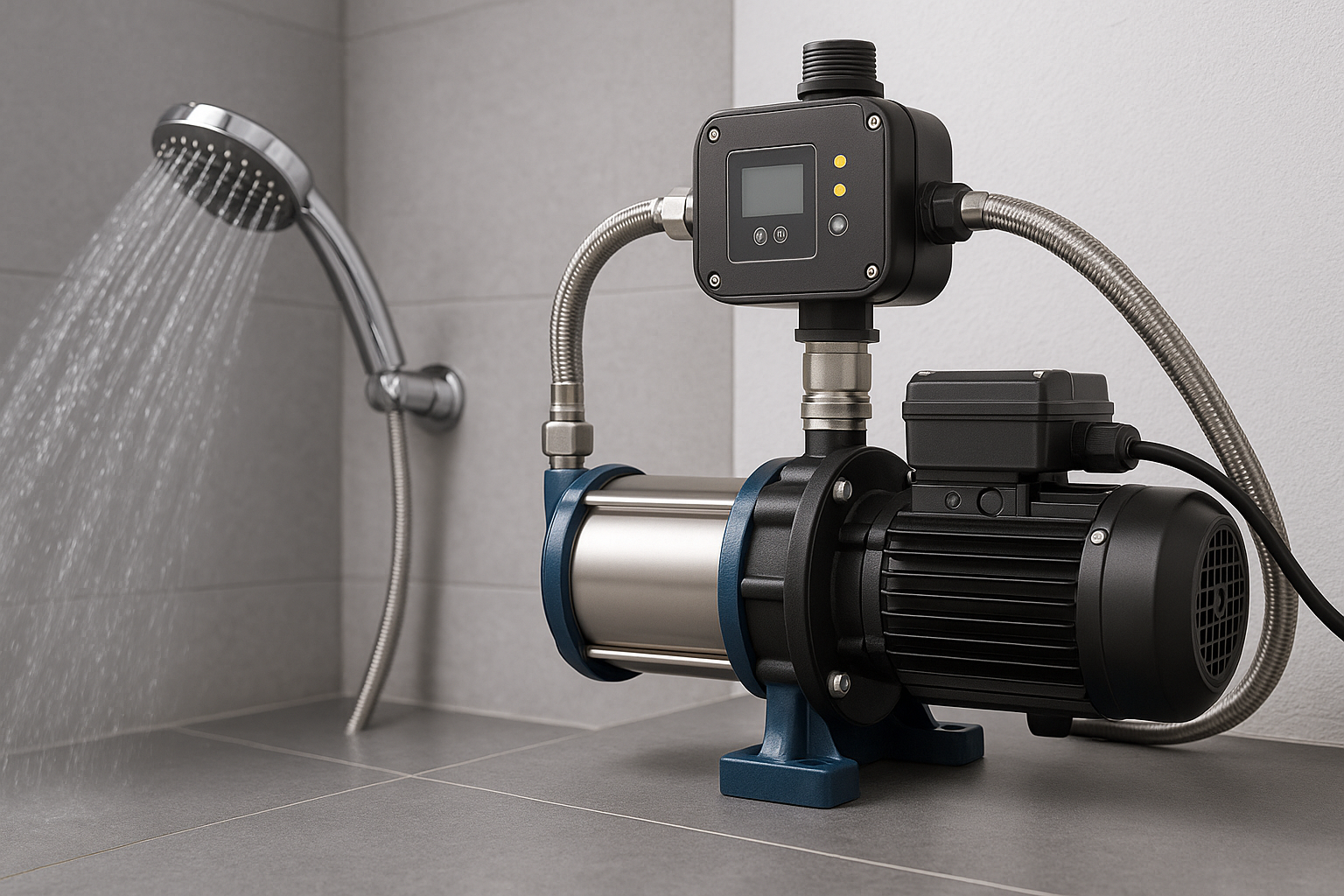

1. Permanent Magnet Synchronous Motors (PMSM): These are extremely efficient motors, rated at IE5, which is the highest efficiency class. They use less electricity to produce the same amount of power as older motor types. For a business owner, this means lower operating costs for their customers. [^2]

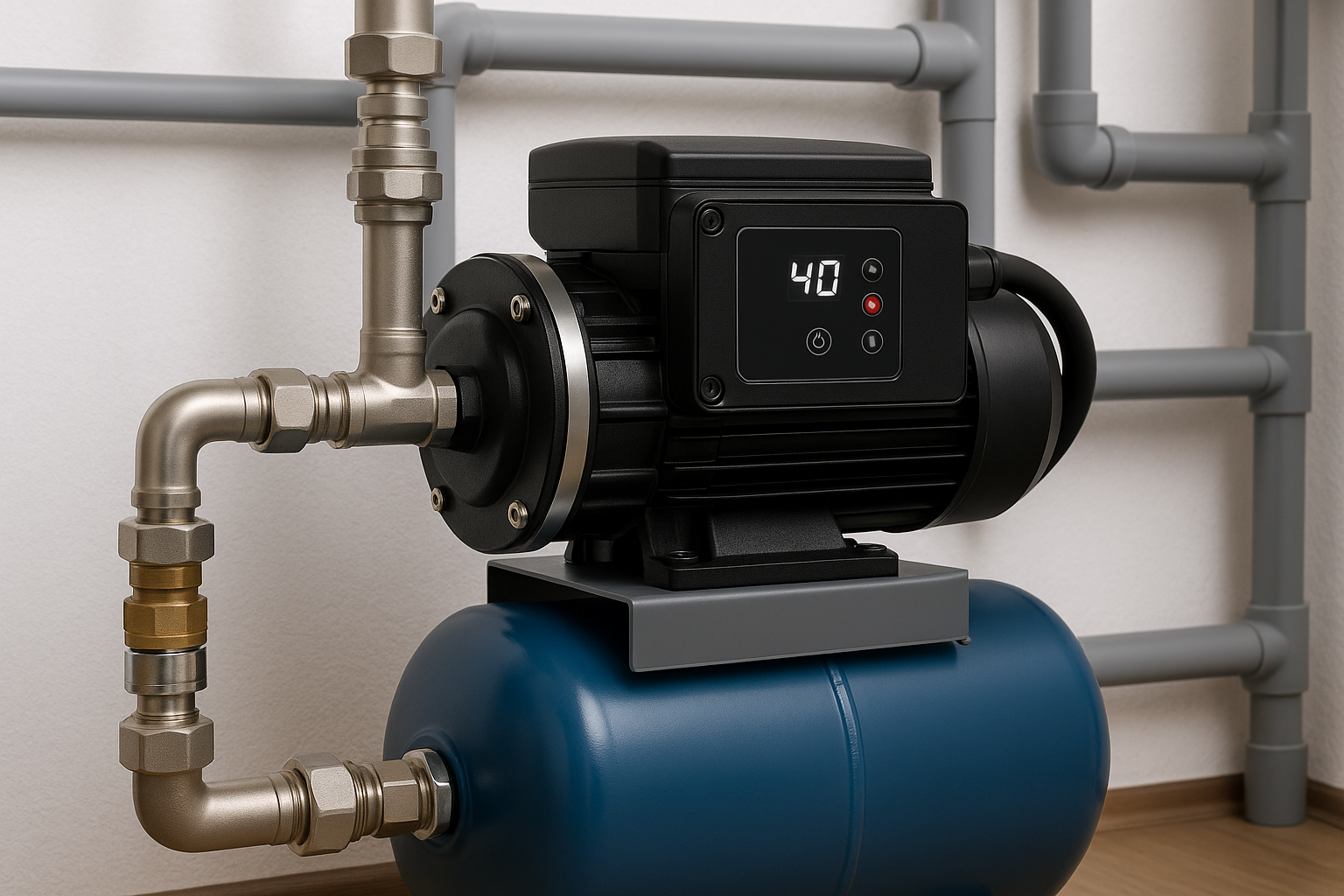

2. Variable Speed Drive (VSD): This is the brain of the pump. A VSD, also called a variable frequency drive (VFD), is an intelligent controller that adjusts the motor's speed in real-time. It has pressure sensors that constantly monitor the water pressure in the pipes.

When you open a faucet, the pressure in the pipe drops. The VSD detects this drop instantly and tells the motor to speed up to maintain the target pressure. When you close all the faucets, the pressure rises, and the VSD slows the motor down or stops it completely. This intelligent control is what defines a modern, smart booster pressure pump. It delivers pressure only when you need it.

We also build them to last. The impellers in our pumps are made from materials like AISI304 stainless steel or high-strength PPO plastic, both of which are highly resistant to corrosion and are certified for food-grade safety. [^3] My customers, like Leon, value this quality because it means fewer returns and a better reputation for their own brand.

How is a booster pressure pump different from a main water pump?

Buying the wrong type of pump is a costly mistake. A main pump and a booster pressure pump have very different jobs. Understanding this difference is critical for designing an effective water system.

The key difference is their starting point. A main pump, like a submersible well pump, draws water from a source (e.g., an underground well). A booster pressure pump takes water that is already flowing in a pipe and just increases its pressure. A booster works with a system; a main pump creates a system.

Let's dive a little deeper into the specific differences. I always use a simple table to explain this to new distributors, as it makes the distinction very clear. A main pump does the heavy lifting to get water to your property, while a booster pressure pump improves the water experience inside your property.

Key Distinctions: Booster Pressure Pump vs. Main Pump

To make it easy, here is a breakdown of the core differences between these two types of pumps.

In my experience manufacturing for diverse markets, I see this distinction play out in many real-world scenarios. For example, a customer in a rural area of the United States might use a deep well pump (a main pump) to pull water up from 50 meters underground and fill a large storage tank on their property. This is the primary water supply.

However, the pressure from that tank relying on gravity alone might not be enough for their two-story farmhouse and irrigation system. That is when they install one of our RAFSUN VSD booster pressure pump systems. The booster pump takes the water from the tank and pressurizes it to a strong, constant 4 bar, ensuring the upstairs bathroom has a great shower and the garden sprinklers have enough force to cover the whole lawn.

Some of our booster pump models do have self-priming capabilities, meaning they can lift water from a shallow source, up to 8 meters below the pump. [^4] But even with this feature, their main design and purpose is to boost pressure, not to act as the primary pump for a deep well.

What is the primary role of a modern booster pressure pump?

You might think a booster pressure pump just makes water spray harder. That was true for older, basic models. But modern pumps, especially smart VSD pumps, do so much more. Their role has evolved to offer a level of intelligence and efficiency that old pumps could not.

The primary role of a modern booster pressure pump is to deliver constant water pressure intelligently and efficiently. It does not just blindly boost pressure; it adjusts its speed based on actual water demand, saving huge amounts of energy, running silently, and protecting the entire plumbing system.

Many of my B2B clients, who supply pumps for residential and commercial buildings, focus on three core roles of a modern booster pressure pump when they talk to their customers. It’s not just about a stronger shower; it’s about a smarter, more sustainable water system.

Beyond Boosting: The 3 Core Roles of a VSD Booster Pressure Pump

1. Ensuring Flawless, Constant Pressure
   Everyone knows the frustration: you are enjoying a nice, hot shower, and someone else in the house flushes a toilet. Suddenly, your shower turns into a weak, cold dribble. This happens because a traditional system cannot handle simultaneous demand. A VSD booster pressure pump completely eliminates this problem. Its built-in sensors maintain a precise target pressure. If you set it to 3 bar, it will deliver 3 bar whether one tap is open or five are. Our pumps provide a wide range of pressure settings, allowing the user to dial in their perfect comfort level. [^1] This is a game-changer for large families, apartment buildings, and commercial facilities like hotels.

2. Maximizing Energy Efficiency and Saving Money
   This is perhaps the biggest selling point for any property manager or business owner. A traditional, fixed-speed booster pressure pump operates on a simple on/off switch. When it’s on, it’s running at 100% full power, even if you only slightly open one small faucet. This is incredibly wasteful. A VSD booster pressure pump, by contrast, runs only as fast as it needs to. If you just open one sink tap, the pump might run at only 20% of its capacity. This intelligent speed adjustment can reduce electricity consumption by 30% to 50%. We use super-high-efficiency IE5 motors, which further amplify these savings. For facilities that use a lot of water, like commercial buildings or agricultural operations, the savings on the electricity bill can pay for the pump itself in a very short time. [^2]

3. Providing System Protection and a Longer Lifespan
   Mechanical stress is the number one enemy of pumps and plumbing systems. The sudden, violent jolt of a traditional pump turning on and off at full speed (known as water hammer) sends shockwaves through your pipes. This can weaken joints, cause leaks, and lead to premature failure of the pump. Our VSD pumps have a "soft start" and "soft stop" function. They gradually ramp up to speed and gently ramp down. This drastically reduces mechanical stress. Furthermore, our controllers have up to 14 built-in protection functions. [^3] They protect against dry-running (running without water), overcurrent, overvoltage, and overheating. This not only extends the life of the booster pressure pump itself but also protects the entire plumbing network it is connected to.

Will a booster pressure pump actually increase my water pressure?

It's a fair question. You're considering an investment, and you want to be sure it will solve your problem of weak water flow. Will a booster pressure pump really fix it? Let's get straight to the point and clear up any doubts.

Yes, absolutely. That is its fundamental purpose. A correctly sized and installed booster pressure pump will take your low inlet pressure and raise it to a higher, more useful, and consistent outlet pressure. It is designed from the ground up to solve the exact problem of low water pressure.

The science behind it is straightforward. As I mentioned, the pump’s motor spins an impeller. This impeller uses centrifugal force to fling the water towards the outside of the pump casing at a very high speed. The shape of the casing, called a volute, is designed to slow the water down. As the water slows, its kinetic energy (energy of motion) is converted into potential energy (pressure). The faster the impeller spins, the more pressure is generated.

This isn't just theory; it's something we measure and guarantee.

How We Measure and Guarantee a Pressure Increase

In the pump industry, we don't guess. We use a tool called a pump performance curve. Every pump model we manufacture at RAFSUN has a unique curve that is tested and certified in our R&D lab. This curve is a simple graph that shows you exactly how much pressure the pump can produce at different flow rates.

The two main axes on the graph are:

• Flow Rate (Q): This is how much water is moving through the pipe, usually measured in cubic meters per hour (m³/h) or gallons per minute (GPM).
• Head (H): This is a way of measuring pressure. It represents the height, in meters, that the pump can lift a column of water. Every 10 meters of head is roughly equal to 1 bar (or 14.5 PSI) of pressure.

For instance, let’s look at our RAFSUN BWE-1500 model. Its performance curve shows it can produce a maximum head of 66 meters. [^4] This means if you pointed the pipe straight up, it could push water 66 meters into the air, which is incredible pressure. In a real-world home application, you'd look at a typical flow rate. At a flow rate of 5 m³/h (enough for several fixtures at once), this booster pressure pump still delivers 35 meters of head. That's 3.5 bar of pressure—a perfect, strong pressure for any home.

Let me give you a practical example. A client in Mexico City had a small apartment building where the municipal water pressure was only 1.5 bar. This was fine for the ground floor, but the apartments on the third and fourth floors barely got a trickle. They installed one of our VSD booster pressure pump systems and set the constant pressure target to 3.5 bar. The pump took that weak 1.5 bar inlet pressure and effortlessly boosted it, ensuring every single apartment, even the one on the top floor, had fantastic water pressure.

What are the 5 clear signs I need a booster pressure pump?

You live with annoying water issues every single day. Maybe you have just gotten used to them and think it's normal. I'm here to tell you that it's not. Here are the clear signs that your water system is underperforming and that a simple solution exists.

You likely need a booster pressure pump if you experience: 1) weak or dribbling showers, 2) faucets that take forever to fill a pot, 3) appliances giving low-flow errors, 4) poor water flow on upper floors, or 5) a big drop in pressure when multiple taps are used at the same time.

These are not just minor annoyances; they are symptoms of an inadequate water system. As a manufacturer, I hear these complaints from my distributors' customers all the time. Here is how to diagnose your low-pressure problem.

Diagnosing Your Low-Pressure Problem: The 5 Telltale Signs

1. The Dribbling Shower: This is the number one complaint I hear. A showerhead is designed to work with a certain amount of pressure to create a satisfying spray. If your shower feels more like a light rain or a weak dribble, and you have to move around just to get wet, it's the most classic sign that you need a booster pressure pump.

2. The Slow-Filling Sink or Bathtub: Time yourself filling a large pot of water in the kitchen sink. Does it feel like it takes forever? Or does filling a bathtub seem like an evening-long project? This low flow rate is a direct result of low pressure pushing the water through the pipes.

3. Appliance Malfunctions and Errors: Modern appliances are smarter, but they are also more demanding. High-efficiency washing machines, dishwashers, and even some smart refrigerators with water dispensers require a minimum inlet pressure to function correctly. If your washing machine takes hours to complete a cycle or your dishwasher's display shows a "low water" error code, your water pressure is likely the culprit.

4. Gravity's Toll – Weak Upper Floors: Physics is working against you in a multi-story building. For every meter you go up, you lose about 0.1 bar of water pressure. This means a three-story house (about 9 meters high) will have almost 1 bar less pressure on the top floor than on the ground floor. If the ground floor pressure is already just okay, the top floor will be terrible. A booster pressure pump is essential for equalizing pressure across all floors of a home or commercial building. It is why they are standard in virtually all high-rise buildings. [^6]

5. The Multi-Use Pressure Drop: This is the "shower and toilet" problem we discussed earlier, and it's a huge sign that your system can't handle the demand. If flushing a toilet, running the dishwasher, or using the kitchen sink causes another fixture's flow to drop dramatically, you need a smart booster pressure pump. A VSD pump ensures that there is enough pressure for everyone, no matter how many people are using water at once.

For my B2B customers like Leon, these five problems represent five key sales opportunities. When his customers in South Africa come to him with these exact complaints, he can confidently recommend one of our RAFSUN VSD pumps. They are not only powerful but also super quiet, operating at less than 50dB, [^5] so they won't disturb the peace. By providing a real solution that improves daily life, he builds a loyal customer base and a profitable business.

Conclusion

In short, a modern booster pressure pump provides smart, efficient, and constant water flow. It does more than just increase pressure; it transforms your user experience and protects your entire plumbing system.
