What is a water booster pump?
Struggling with weak showers and trickling taps? Low water pressure is a common frustration. A booster pump provides the consistent, powerful flow you need for your home or business.
A water booster pump is a device that increases the pressure of water from an existing source. It doesn't create water, but it takes the available flow and boosts it, ensuring a strong and steady supply to all outlets in a building.
You are probably tired of dealing with low water pressure. It makes simple tasks like washing dishes or taking a shower take much longer. You might even worry that your appliances, like washing machines, aren't working as they should. This problem can affect your home's comfort and your business's efficiency. But what if there was a smart, simple solution? In my years of experience helping distributors like Leon in South Africa solve these exact issues, I've seen firsthand how the right technology can make all the difference. Keep reading, and I'll explain how these pumps work and why they are the key to solving your pressure problems for good.

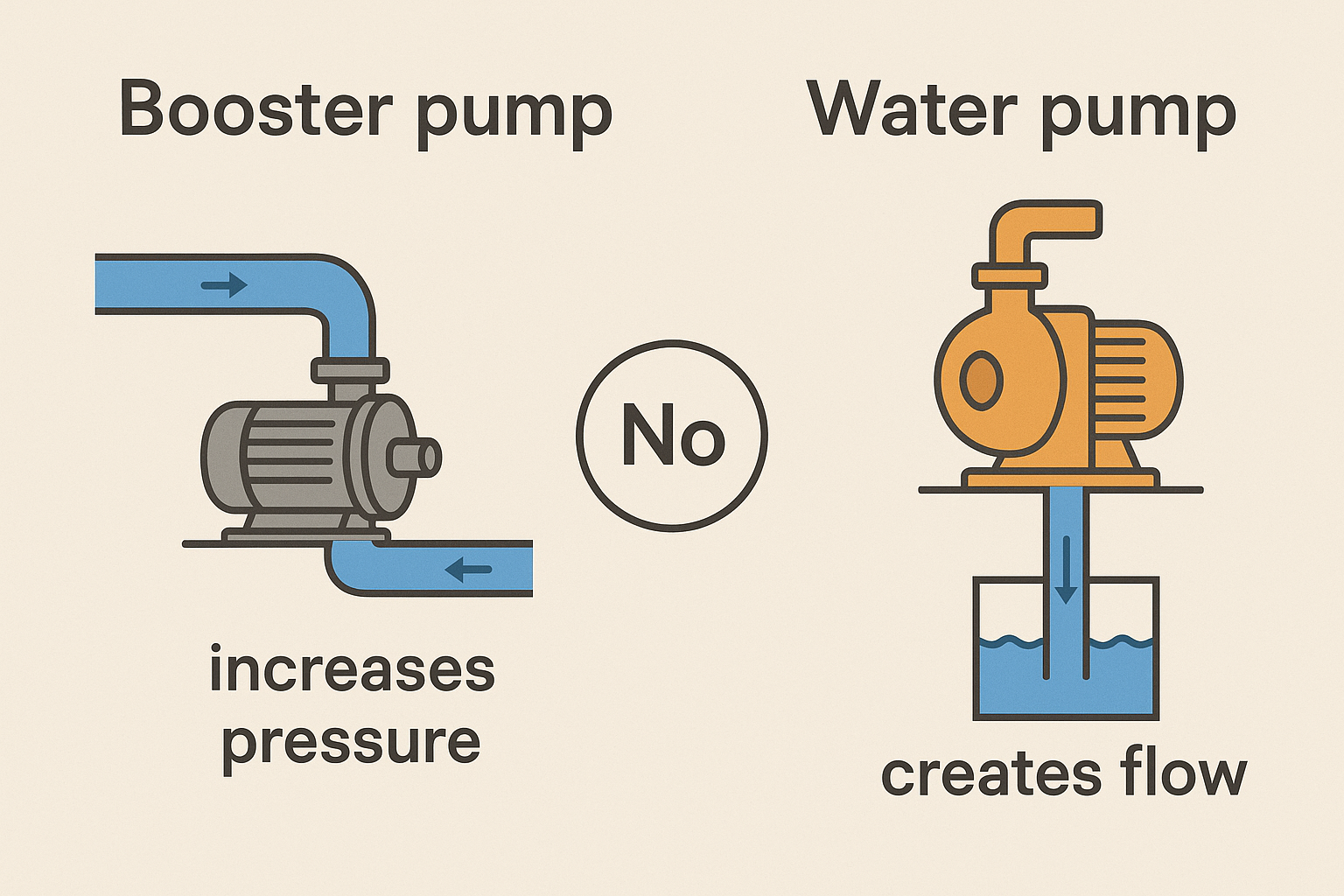

Can I use a booster pump as a water pump?
You see "booster pump" and "water pump" and wonder if they're the same. Choosing the wrong one can lead to an inefficient system or even damage. Let's clear up the confusion.
No, a booster pump is not a standard water pump. A primary water pump, like a well pump, moves water from a source. A booster pump is installed in-line to increase the pressure of that existing flow. It enhances pressure, it doesn't create flow from a static source.
Let me dive deeper into this because it’s a critical point I often discuss with my B2B clients. The two types of pumps serve different functions, and understanding this helps you build better systems for your customers.
The Primary Role of Each Pump
A water pump's job is to transfer water from one place to another. Think of a submersible pump lifting water out of a deep well or a surface pump drawing water from a lake. Its main goal is creating flow.
A booster pump, on the other hand, starts with water that is already flowing in a pipe. Its specific job is to increase the pressure of that water. It’s a specialist for fixing low-pressure problems.
| Pump Type | Primary Function | Typical Use Case |
|---|---|---|
| Water Pump | Create Flow / Transfer Water | Drawing water from a well, tank, or lake. |
| Booster Pump | Increase Water Pressure | Boosting low municipal water pressure; Pressurizing upper floors. |
At RAFSUN, we specialize in VSD booster pumps. Our pumps are designed to be integrated into existing plumbing. They intelligently sense the current pressure and "boost" it to a stable, constant level that you set. They work with the flow you have, making it more powerful and useful.
When to use a booster pump?
Do you notice the water pressure dropping when someone flushes a toilet while you're in the shower? This is a clear sign your system is struggling to keep up with demand.
You should use a booster pump when your municipal water supply provides low pressure, or in multi-story buildings where pressure is weak on upper floors. It is also essential for systems fed by a storage tank or for applications like irrigation that need strong, consistent flow.
Over my decade in this industry, I’ve supplied pumps for countless situations where a booster was the perfect fix. The applications are broad, but they all share a common need: more pressure.
Common Scenarios for a Booster Pump
- Low Municipal Pressure: Sometimes, the water pressure from the city is just not enough for a modern household, especially in expanding urban areas. A booster pump solves this at the point of entry to your home.
- High-Rise Buildings: Gravity is a constant battle. For every 10 meters you go up, you can lose about 1 bar of pressure. This is why top-floor apartments often have terrible showers. Our VSD booster pumps are a standard solution for residential and commercial high-rise buildings [^1].
- Homes with Water Tanks: If you use a rainwater harvesting system or a storage tank, the water pressure is often very low (gravity-fed). A booster pump is necessary to make this water usable throughout the house.
- Specialized Applications: Many commercial and agricultural processes require consistent, high pressure. This includes garden and greenhouse irrigation, poultry facilities, and even HVAC circulation systems [^2]. Our pumps are built to handle these demanding commercial uses.

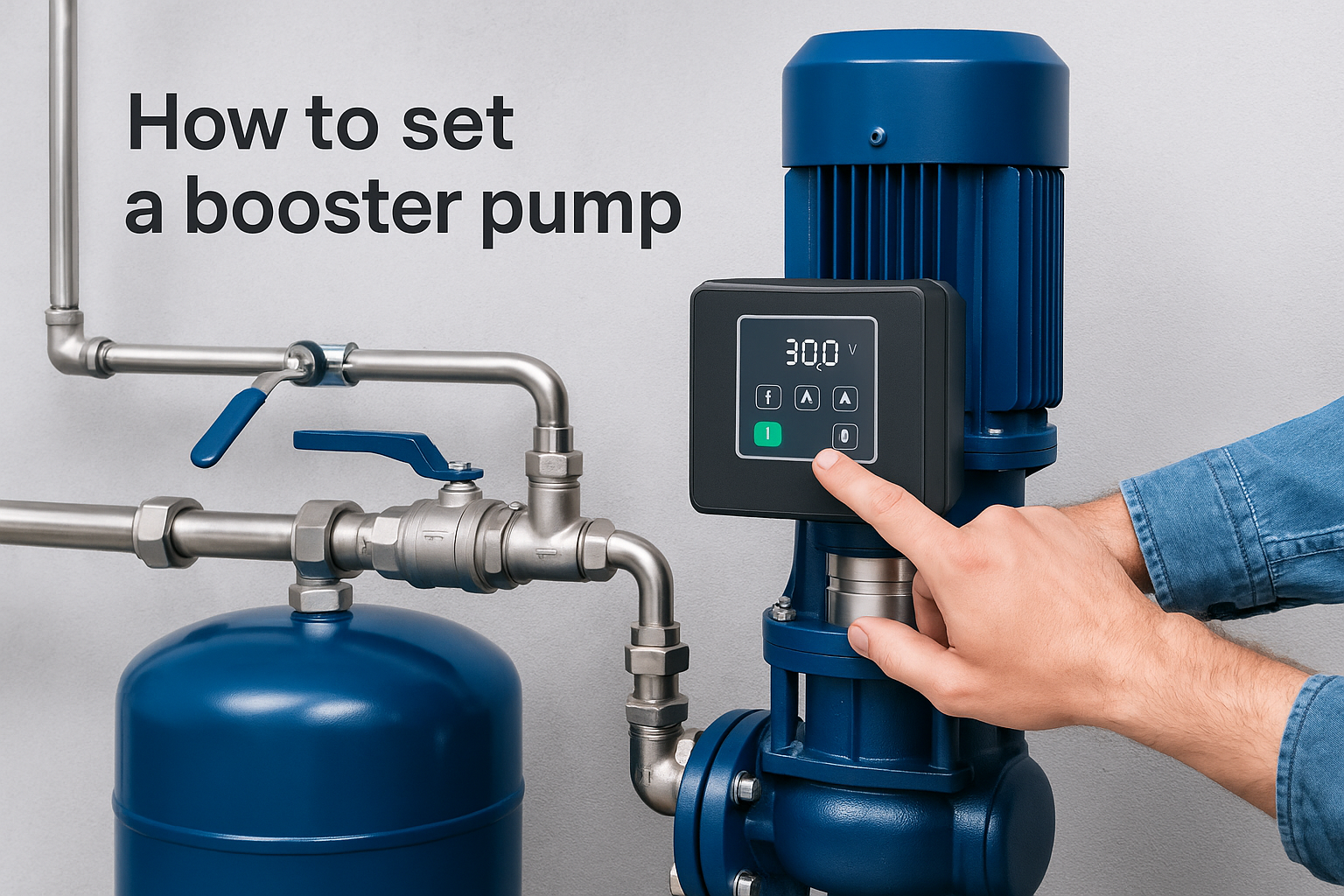

How to set a booster pump?
Worried about a complex setup? An incorrectly set pump can waste energy or fail to deliver results. You need a system that is simple to manage and reliable.
Modern VSD booster pumps from RAFSUN are designed for easy setup. You simply use the control panel to set your desired constant pressure. The pump’s intelligent controller then automatically manages its speed to maintain that pressure perfectly, no matter the demand.
The beauty of modern Variable Speed Drive (VSD) technology is its "set it and forget it" nature. This is a huge selling point for distributors because it means fewer callbacks and happier end-users. The process is incredibly straightforward.
Setting Your Constant Pressure
Our pumps feature a user-friendly interface. Here’s how simple it is:
- Determine Your Need: For a typical home, a constant pressure of 3.0 to 4.0 bar is ideal. For other applications, you can set it anywhere within a wide range.
- Input the Value: Use the simple up and down arrows on the control panel to dial in your exact desired pressure.
- Let the Pump Take Over: That's it. The intelligent controller continuously monitors the pressure. When a tap opens, it senses the drop and instantly speeds up the motor to maintain the set pressure. When the tap closes, it slows down or stops, saving energy.
Our pumps also have optional WiFi functionality, allowing for remote control and real-time monitoring through a smartphone [^2]. This means you or your customers can check system status and receive fault alerts from anywhere, adding another layer of convenience and control.

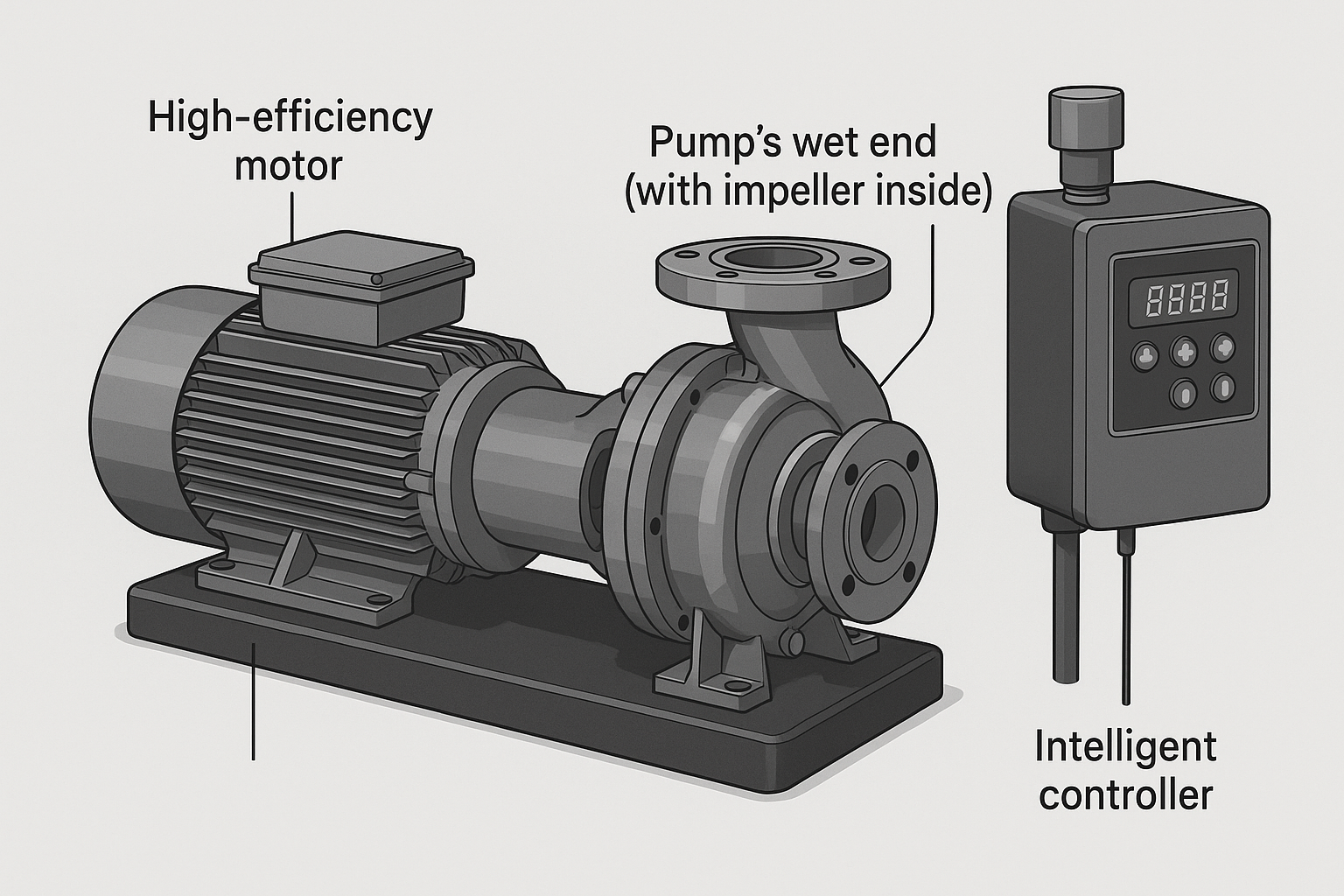

What are the components of a booster pump?
When you’re buying a pump, you need to know what's inside. Not all are built alike. Sourcing pumps with inferior components leads to breakdowns and frustrated customers.
A modern VSD booster pump system is an integrated unit. The main components are the high-efficiency motor, the pump's wet end (with an impeller inside), and the intelligent controller which includes built-in sensors. Quality materials in each part are essential for long-term reliability.
At RAFSUN, we built our reputation on quality components. As an engineer and manufacturer, I know that a pump is only as strong as its weakest part. That’s why we focus on every detail.
Inside a RAFSUN VSD Booster Pump
- Motor: We use a Permanent Magnet Synchronous Motor (PMSM) with an IE5 efficiency rating—the highest standard. This is the heart of our energy savings, reducing electricity use by up to 50%.
- Pump Wet End: This is the part that touches the water.
- Impeller: This rotating component creates the pressure. We use premium materials like corrosion-resistant AISI304 stainless steel [^2] or brass [^5] to ensure durability and safe, clean water.
- Pump Body: Designed for optimal water flow and built to last.
- Intelligent Controller: This is the brain. The Printed Circuit Board (PCB) is sealed with a potting compound, protecting it from moisture and vibration [^2]. It provides 14 different automatic protection functions, including safeguards against water shortages, overcurrent, and overheating, ensuring a long and reliable service life [^2].
- Sensors: Integrated pressure and flow sensors provide the real-time data our controller needs to make smart, instant adjustments.
This focus on quality materials and integrated design is why we can confidently offer our pumps to over 150 countries.

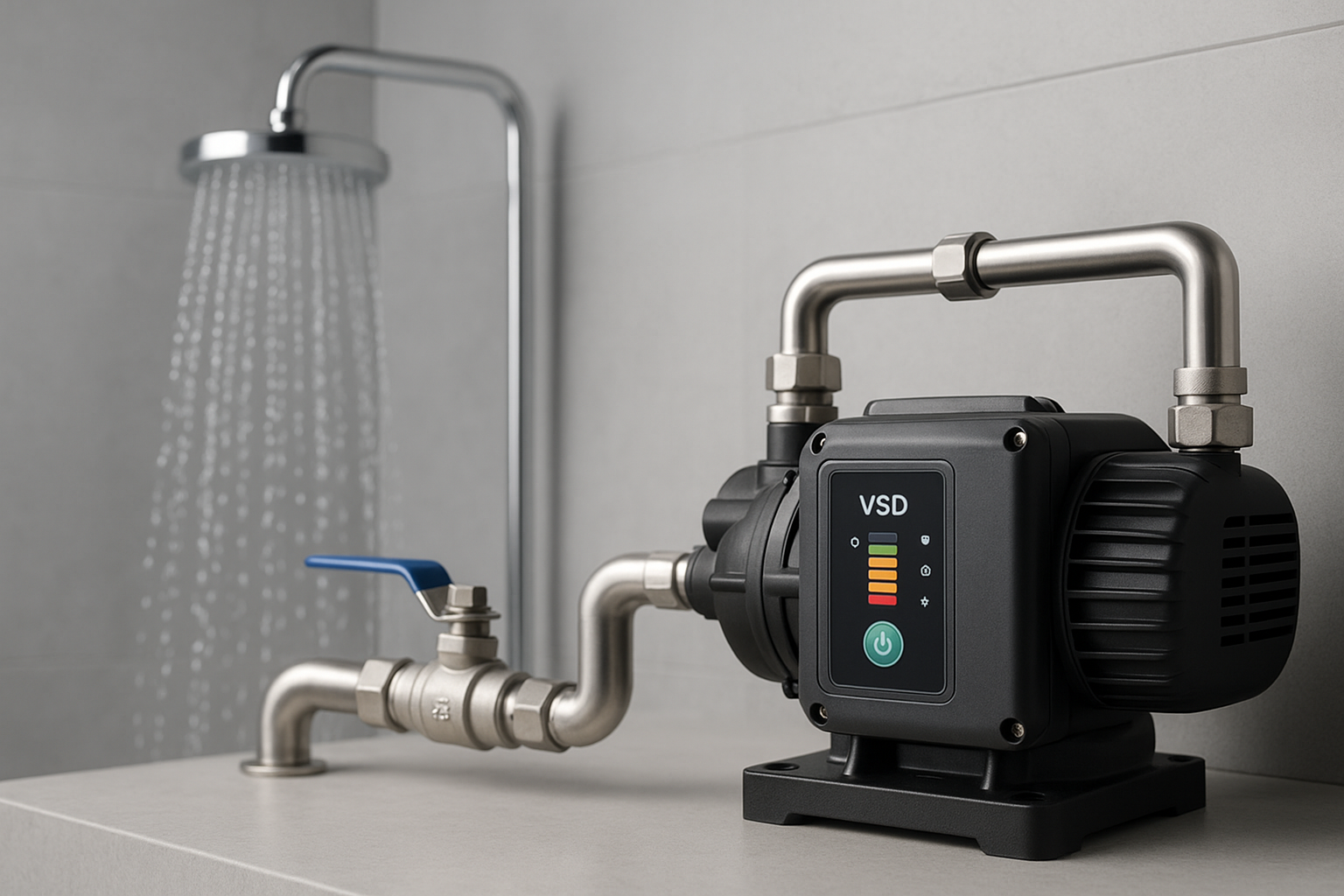

How to increase water pressure in my top floor flat?
Living on the top floor and dealing with a weak, trickling shower? It's a common headache in apartments and multi-story buildings that can make daily routines frustrating.
The most effective solution to increase water pressure in a top-floor flat is to install a dedicated VSD booster pump. It gets installed on your incoming water line and actively boosts the pressure to a constant, comfortable level for all your taps and appliances.
This is one of the most common problems our residential pumps are designed to solve. As water travels up a building, it loses pressure due to gravity and friction within the pipes. A booster pump is not just a luxury in this scenario; it's a necessity for modern living.
The Perfect Solution for Apartments
A RAFSUN VSD booster pump is ideal for an apartment for several key reasons:
- Super Silent Operation: Nobody wants to hear a loud pump kicking on and off. Our pumps operate at less than 50dB [^2], which is quieter than a normal conversation. Your customers won't even know it's running.
- Constant, Unwavering Pressure: Our VSD technology eliminates fluctuations. It maintains the exact pressure you set, so a flushing toilet will no longer affect the shower. It is perfect for high-rise buildings [^2].
- High Energy Efficiency: The pump only runs as fast as needed, drastically cutting electricity consumption compared to old, fixed-speed pumps. This is a great benefit for any homeowner's utility bills.
- Compact & Easy to Install: Our pumps have an integrated, compact design, making them easy for a plumber to install in a utility closet or service area without taking up much space.
- Reliable Protection: With 14 built-in protections [^2], the pump is safeguarded against common issues like running dry, ensuring it has a long, maintenance-free life.
Conclusion
Ultimately, a VSD booster pump is the modern, intelligent solution for low water pressure. It provides constant, reliable pressure, operates quietly, and saves significant energy, transforming your water system.
