The Ultimate Guide to Twin Booster Pumps: 5 Shocking Facts You Need to Know?

Struggling with inconsistent water pressure in large buildings? This frustration leads to unhappy tenants and operational chaos. This guide reveals the ultimate solution for stable water pressure.

A Twin Booster Pump system is an engineered unit with two pumps that work together to guarantee reliable, powerful water pressure. It provides critical backup and meets high demand, making it an essential upgrade for modern residential or commercial buildings.

In my decade of experience in the water pump industry, I've spoken with hundreds of importers and distributors just like my friend Leon Fourie in South Africa. They all face a common challenge: their customers demand a robust, reliable water supply solution. A single, failing pump can damage a business's reputation. This is where the concept of Twin Booster Pumps becomes a true game-changer. But to appreciate the power of two, we first need to understand the job of one. Let's start with the basics of what a booster pump does. This is the first step to unlocking consistent, powerful water pressure for your clients. Are you ready to dive in?

What is the fundamental purpose of a booster pump?

Is low water pressure causing constant complaints in your multi-story buildings? This common issue disrupts daily life and business operations. A quality booster pump is the direct answer.

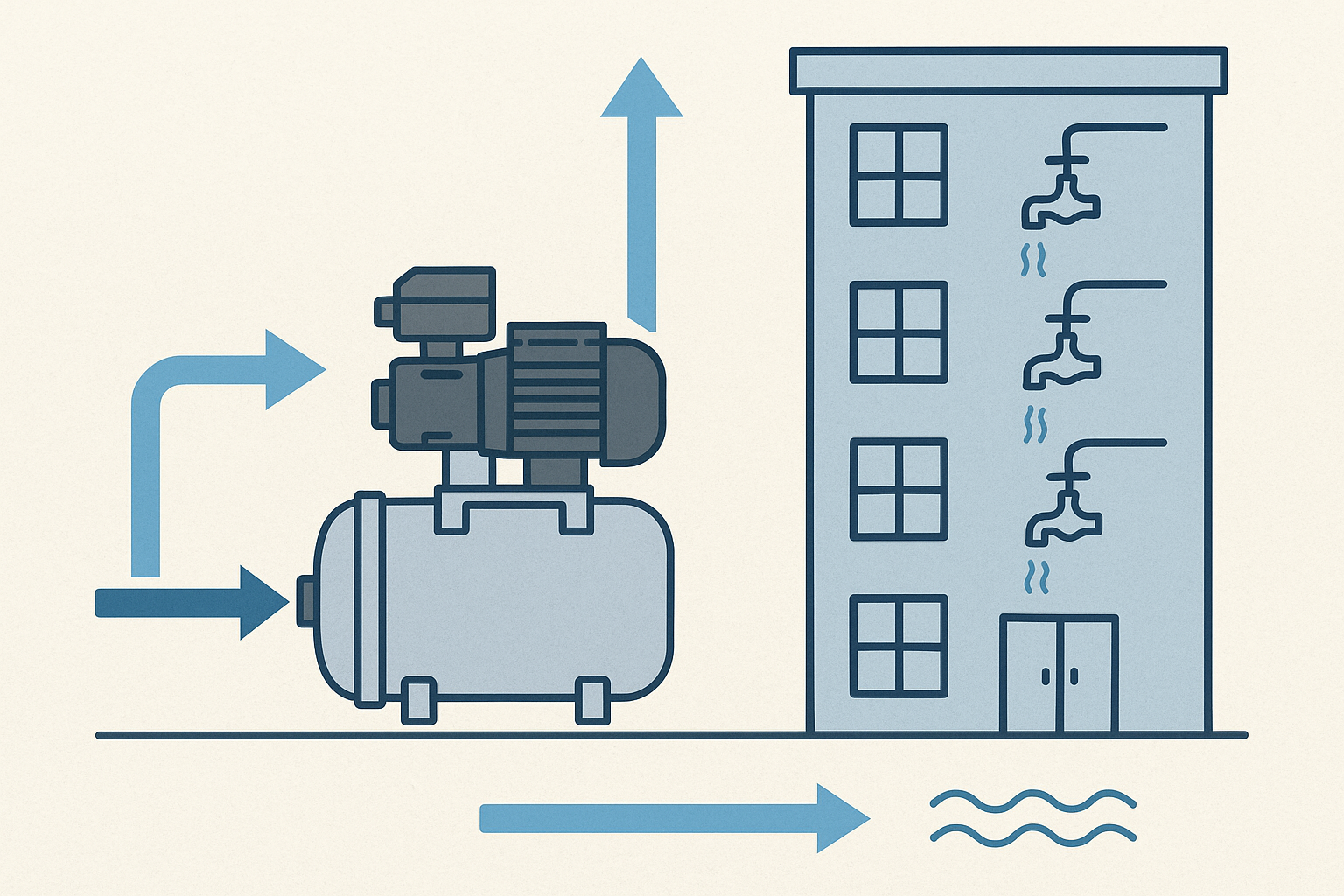

The main purpose of a booster pump is to increase the pressure of water from the main supply. This ensures a strong, consistent flow to all outlets, from the ground floor to the top floor, which is vital for both residential and commercial applications.[^2]

Think of the water supply from your city. By the time it reaches a large building or a property far from the municipal source, the pressure is often too weak to service every floor effectively. This results in weak showers and inadequate flow for appliances. A booster pump acts like an engine for your water, taking the existing flow and giving it the extra push it needs to travel upwards and outwards with force.

However, not all booster pumps are created equal. Older, traditional models have a major flaw: they are either off or running at 100% speed. This is incredibly inefficient. It's like flooring the gas pedal every time you want to move your car, even just a few feet. It wastes energy and puts a lot of stress on the motor. Modern systems, like our RAFSUN pumps, use Variable Speed Drive (VSD) technology. This smart feature allows the pump to adjust its speed in real time based on actual water usage. This intelligent control maintains perfectly constant pressure and delivers incredible energy savings of up to 50%.

Traditional vs. VSD Booster Pumps: What's the Real Difference?

To really see the benefit, let's compare them side-by-side. For distributors, explaining this difference is key to selling a premium, high-value solution.

Understanding this evolution from basic boosting to smart, energy-efficient pressure management is the foundation for appreciating why a Twin Booster Pump system is the superior choice for any critical application.

So, what exactly is a twin booster pump system?

Are you worried about a single pump failing and causing a complete water outage? This risk is costly and can severely damage your reputation. A twin system offers a powerful, reliable solution.

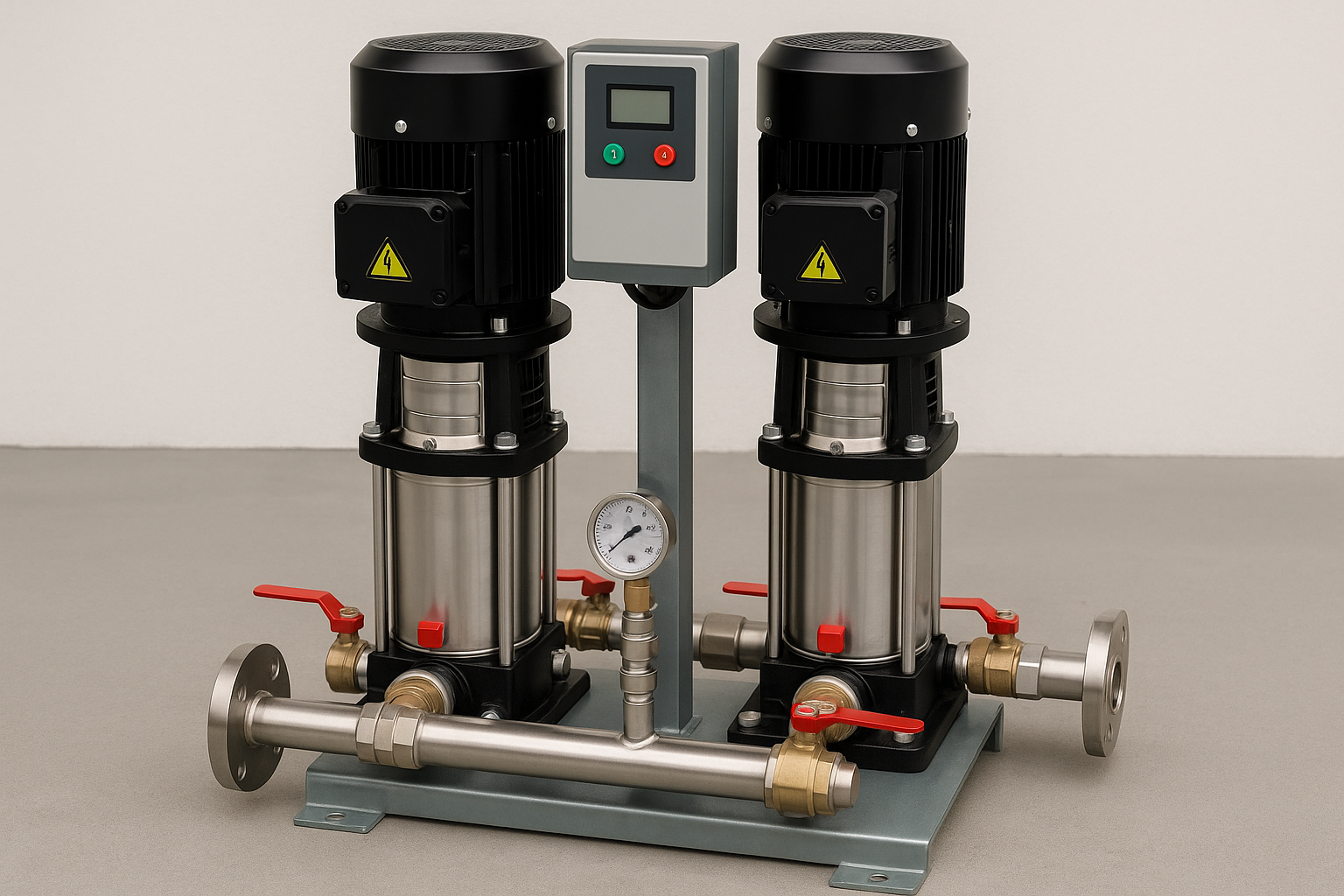

A twin booster pump system is an integrated unit with two pumps mounted on a shared foundation. A central controller manages them to work in tandem or alternate, providing unmatched reliability, higher flow capacity, and balanced operational wear for uninterrupted service.[^1]

When I talk to clients, I explain that a Twin Booster Pump system is much more than just placing two pumps next to each other. It's an intelligent, fully engineered solution designed for performance and peace of mind. The two pumps are linked to a single, smart controller that acts as the brain of the operation. This setup is specifically designed to overcome the limitations of a single-pump system, especially in places where a water supply failure is not an option, like hotels, apartment complexes, hospitals, and industrial processes. The entire system is built and tested as one unit, which guarantees that all components work together perfectly. This integrated approach delivers a level of performance that a makeshift, two-pump setup could never achieve. For distributors, offering a pre-engineered twin system from a trusted manufacturer like RAFSUN means providing a reliable, high-value product that solves their customers' biggest problems right out of the box.

The Core Advantages of a Twin Booster Pump Configuration

The benefits of a professional twin system go far beyond just having a backup. Each feature is designed to deliver tangible value.

• Ultimate Reliability & Redundancy: This is the most crucial benefit. If one pump requires maintenance or unexpectedly fails, the system controller automatically activates the second pump to take over the full load. For the end-user, there is zero downtime.[^3] The water keeps flowing, and a potential crisis is completely avoided.
• Higher Flow Capacity: Think about a hotel during the morning rush. A single pump might struggle to keep up as hundreds of guests shower at once. In a Twin Booster Pump system, the controller recognizes this peak demand and runs both pumps simultaneously. This doubles the flow capacity and ensures that even at maximum usage, the water pressure remains strong and constant for everyone.[^1]
• Extended Equipment Lifespan: Our twin systems use an "Auto-Alternating Run Mode."[^2] This means the controller intelligently alternates which pump starts a cycle. If Pump A started last time, Pump B will start this time. This simple feature perfectly balances the operational hours and wear-and-tear between the two pumps, which can dramatically extend the overall service life of the entire system.
• Peak Efficiency & Smart Control: The VSD controller is the key to energy savings. It runs a single pump at the most efficient speed for low-to-medium demand. It only engages the second pump when absolutely necessary, preventing the massive energy waste you'd see if two pumps were running all the time.

How does a twin pump system actually work?

Is managing a dual pump system complicated? Many of my clients initially fear complex setups that require specialized training. But modern Twin Booster Pump systems are surprisingly intelligent and simple to operate.

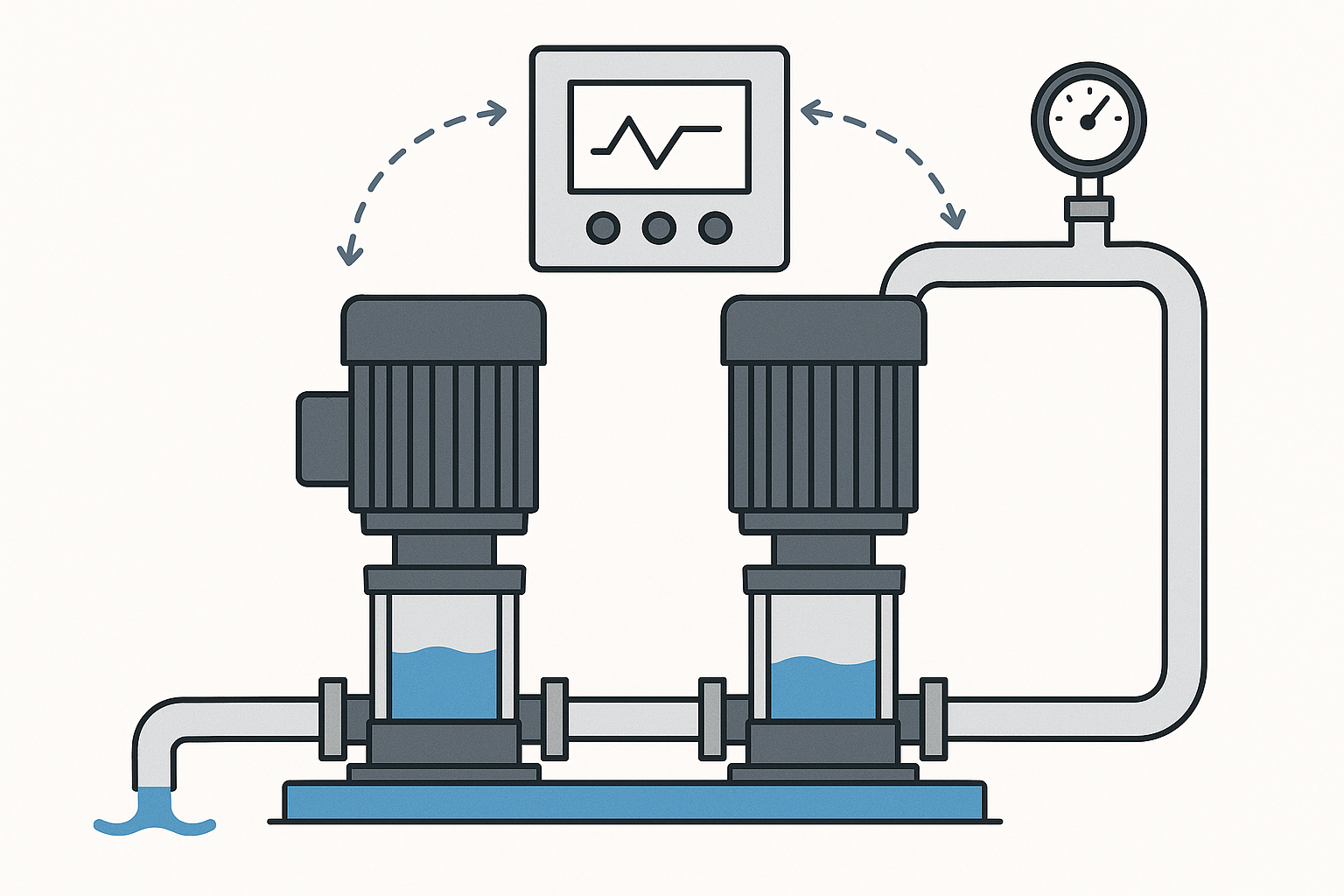

A twin booster pump system operates via a smart controller. It uses an "alternating run mode" to balance wear and automatically activates the second pump only during high-demand periods to maintain constant pressure and maximize energy efficiency.[^3]

Let's demystify the process. The beauty of a system like ours is that the intelligence is built-in. The VSD controller handles everything automatically, ensuring a seamless and efficient response to changing water needs. There is no need for manual intervention; the system thinks for itself. We've designed it to be as close to "plug-and-play" as possible for a commercial-grade unit. For property managers and maintenance teams, this means less time worrying about the water supply and more time focusing on other tasks. The optional WiFi function even allows them to monitor everything from their phone, including real-time pressure, operating status, and energy consumption.[^2] This level of smart control transforms water management from a manual chore into an automated, data-driven process. It truly is a modern solution for modern buildings.

A Step-by-Step Look at Twin Booster Pump Operation

Here is what happens behind the scenes when a tap is turned on in a building serviced by a RAFSUN Twin Booster Pump system:

1. System Ready: Both pumps are on standby, ready to go. The controller has designated one pump as the "host" for the current cycle.
2. Low Demand: A single tap opens. The host pump starts up softly, using its VSD to precisely match the flow needed to keep the water pressure constant.
3. Demand Increases: More taps are opened. The host pump intelligently increases its speed to keep up with the demand.
4. Peak Demand Trigger: If demand becomes so high that the host pump reaches full speed but the pressure still begins to fall slightly, the controller instantly activates the "slave" pump.[^1]
5. Tandem Operation: Both pumps now work together. The controller manages their combined output to deliver double the flow, easily satisfying peak demand while keeping pressure perfectly stable.
6. Demand Decreases: As taps are closed, the controller is smart enough to shut down the slave pump first. The host pump then ramps down its speed to match the lower demand, saving energy.
7. System Stop: Once all taps are closed, the host pump performs a soft stop and returns to standby, waiting for the next call for water. On the next cycle, the roles will switch to balance the workload.

This intelligent sequence ensures the system only ever uses the exact amount of energy required, providing both powerful performance and maximum efficiency.

Can you simply connect any two water pumps together?

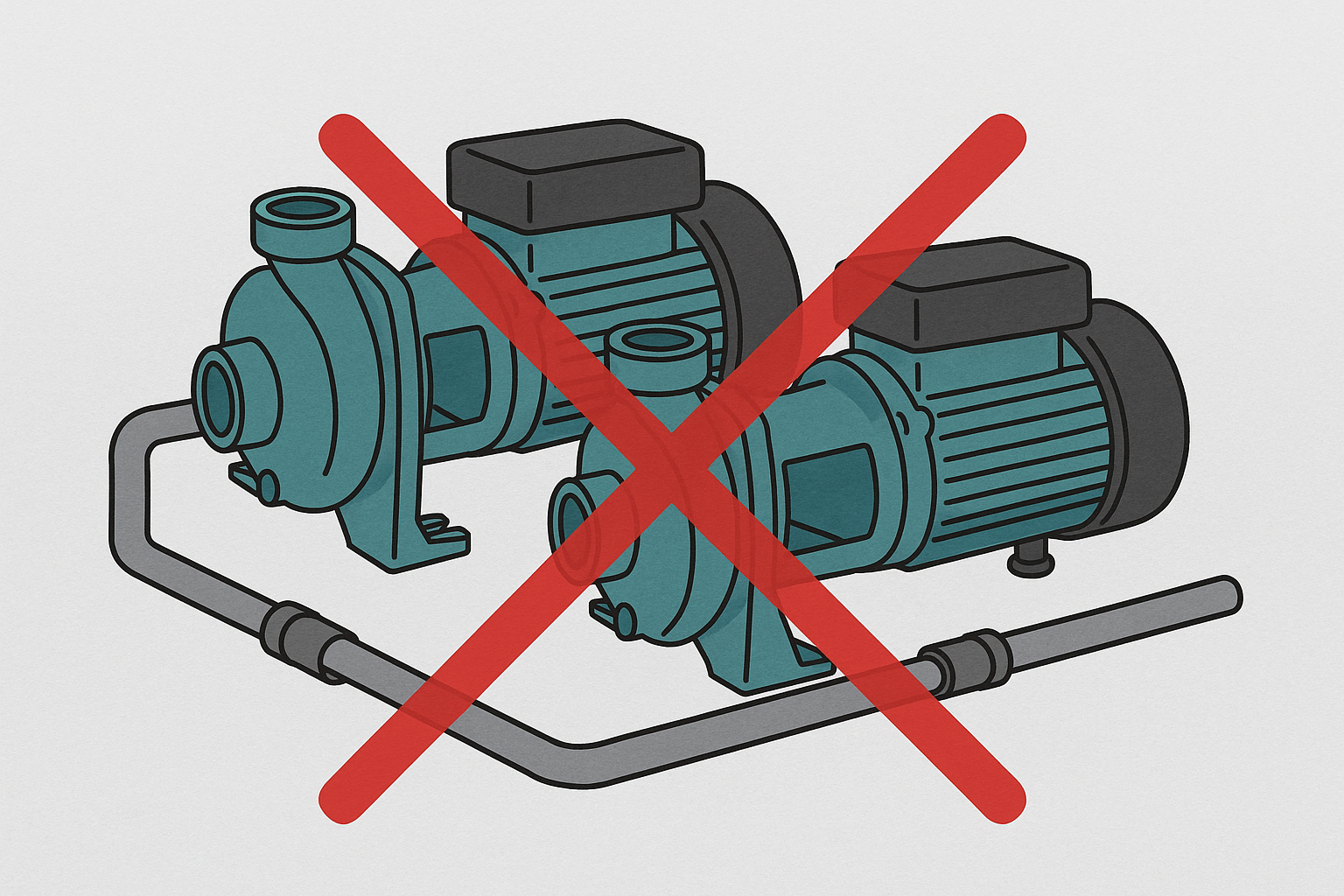

Thinking of just wiring two standard pumps in parallel to create your own twin booster pump? This common DIY approach often backfires, leading to inefficiency, premature failure, and expensive system damage.

No, you cannot simply connect two random water pumps together and expect them to work. A true twin booster pump system requires a specialized, synchronized controller. Without it, the pumps will work against each other, causing inefficiency, pressure chaos, and rapid failure.

I get this question from time to time, especially from people trying to find a low-cost shortcut. My answer is always a firm no. Trying to create your own twin system by just plumbing two separate pumps together is a recipe for disaster. It’s like having two drivers trying to steer the same car without communicating—the result is chaotic and dangerous. A professionally engineered Twin Booster Pump system is designed from the ground up for dual operation. The pumps, the motors, and most importantly, the VSD controller are all selected and programmed to work in perfect harmony. This integration is not a feature; it's the entire foundation of the system's reliability and efficiency. Investing in a factory-built system from a manufacturer like RAFSUN ensures you get a solution that is tested, certified, and backed by a warranty. It's the professional way to guarantee performance and protect your customer's investment.

The Dangers of an Uncontrolled Dual Pump Setup

Attempting to build a makeshift twin system can lead to several severe technical problems that a professional system is designed to prevent.

• Mechanical Conflict: Without a central controller, the pumps will literally fight each other. If one pump creates slightly more pressure, it can force water backward through the other pump. This can cause the impeller to spin backward, leading to catastrophic failure.
• Chaotic Operation: The pumps will turn on and off at random intervals, unable to properly sense the true system pressure. This rapid, unsynchronized cycling wastes huge amounts of energy and causes the motors to overheat, drastically shortening their lifespan.
• No True Redundancy: If one pump in a DIY setup fails, there is no intelligent system to isolate it. The failed pump could create a blockage or an electrical fault that brings the entire water supply down. The "backup" pump offers no real protection.
• Voided Warranties: This is a critical point for any professional distributor or installer. No manufacturer, including RAFSUN, will honor the warranty on a pump that has been damaged due to installation in an improper, uncontrolled dual-pump configuration. It's a risk that simply isn't worth taking.

What happens when one pump in a twin booster pump system fails?

Is your biggest fear a pump failure that leads to a total water shutdown and a flood of angry calls? This single point of failure is a nightmare scenario for any property manager or building owner.

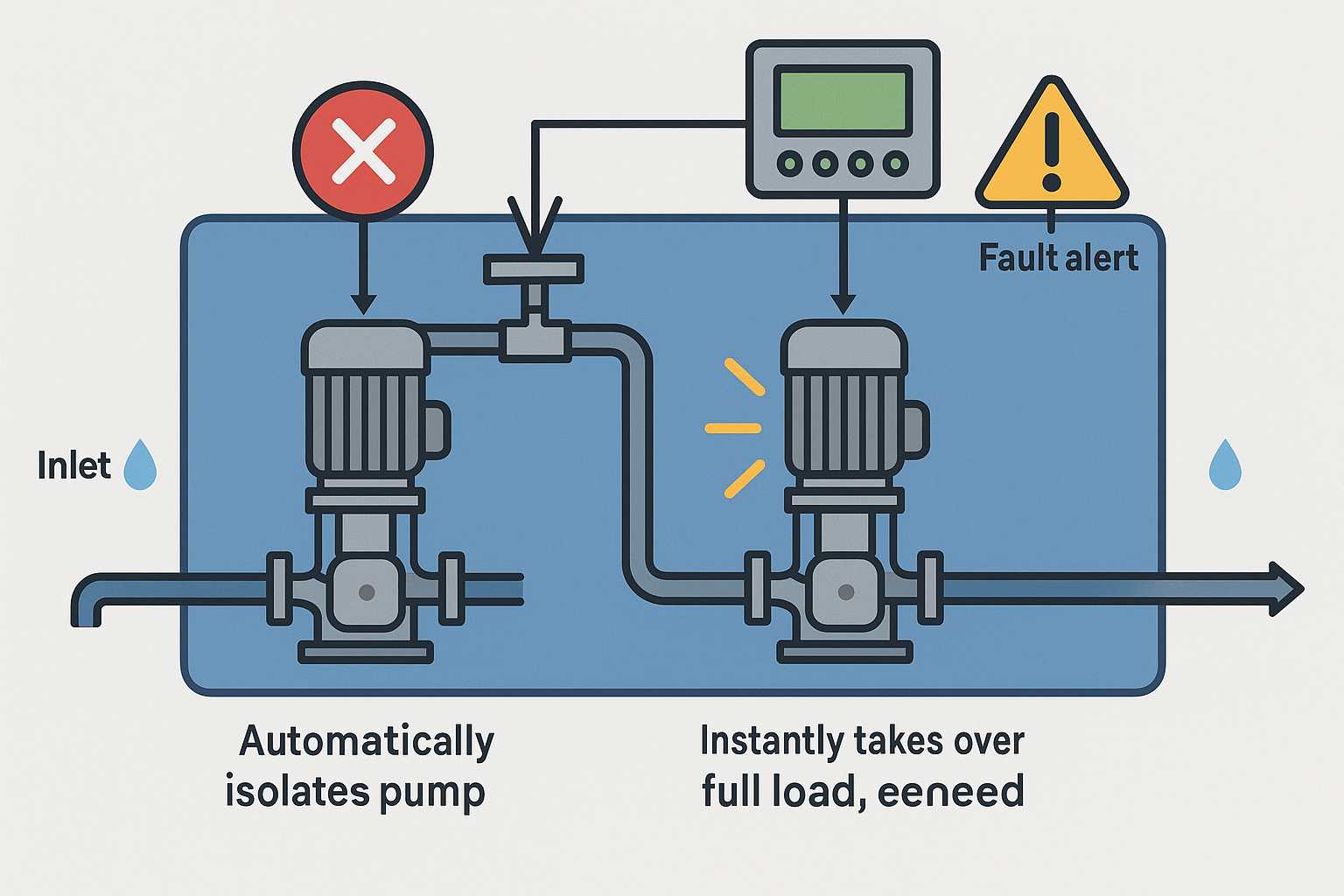

In a true twin booster pump system, if one pump fails, the smart controller automatically isolates it. The second pump instantly takes over the full load, ensuring there is zero interruption to the water supply while simultaneously sending a fault alert for maintenance.[^2]

This is the ultimate selling point and the core reason why Twin Booster Pump systems are the standard for critical applications. The built-in redundancy provides complete peace of mind. It transforms a potential emergency into a routine maintenance task. When a failure is detected, the healthy pump keeps the water flowing to tenants and customers, who will never even know there was an issue. Meanwhile, the system alerts the maintenance team to the problem. The technician can then arrive and service the failed pump while the second pump continues to do its job. There's no panic, no emergency shutdown, and no damage to the business's reputation. This seamless failover capability is something a single-pump system can never offer. It's not just a feature; it's an insurance policy for your water supply.

Built-in Redundancy: Your Ultimate Safety Net

Our RAFSUN pumps are already incredibly reliable, thanks to robust design and advanced protection features. The twin system elevates this reliability to a whole new level.

This reliability starts with preventing failures before they happen. Our pumps include a comprehensive suite of 14 built-in protection functions.[^4] This onboard intelligence constantly monitors the pump's health and protects it from common causes of damage.

When a fault does occur in a twin system, the response is instantaneous. The controller logs the error, isolates the faulty pump, and sends an alert via the WiFi module. This means a service team can be dispatched with full knowledge of the problem before anyone even picks up the phone to complain. This is the definition of a smart, resilient water management system.

Conclusion

In short, Twin Booster Pumps deliver unmatched reliability, smart efficiency, and powerful performance. They are the ultimate solution for guaranteeing constant water pressure in any demanding application.
