The 6 Astonishing Truths About A Variable Speed Drive Pump You Can't Ignore?

Tired of fluctuating water pressure and shocking electricity bills? Your old pump is likely wasting energy and money every single minute it runs, causing unnecessary stress and wear.

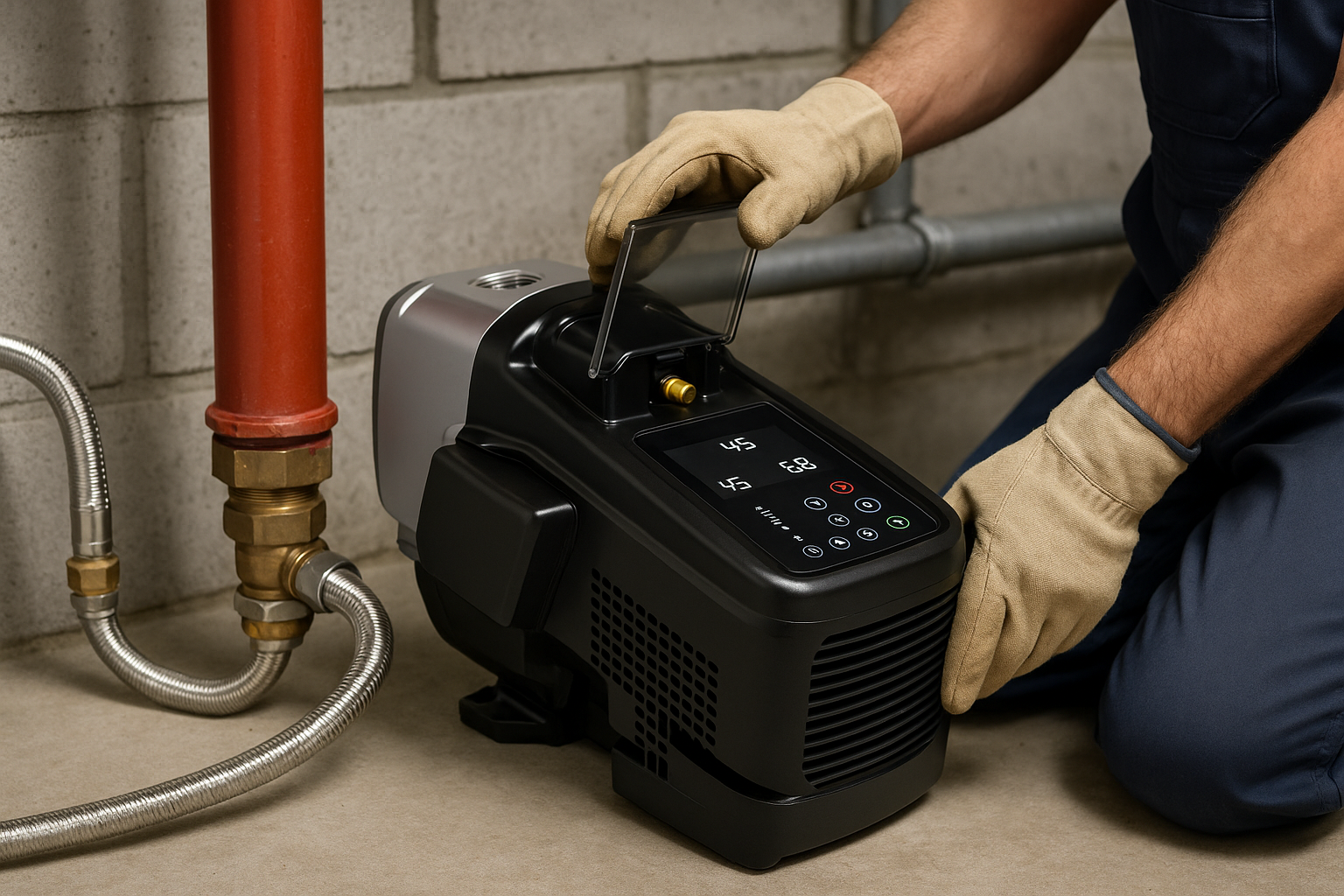

A variable speed drive pump is your ultimate solution. It’s an intelligent system that adjusts its motor speed to match water demand, ensuring perfect, constant pressure while cutting energy use by up to 50%.[^2] This technology isn't just an upgrade; it's a complete transformation for any water system.

This technology might sound complex, but the benefits are incredibly simple: massive savings and happy customers. As a manufacturer at RAFSUN, I've seen firsthand how these pumps transform water systems for businesses worldwide. I want to break down what a variable speed drive pump really is and share some powerful insights I've gathered from my R&D team and from talking to customers from South Africa to the United States. Let’s dive into the essential truths you need to know to make the best decision for your business.

What Exactly Is A Variable Speed Drive Pump and Why Should You Care?

Confused by technical jargon? This term seems complicated, but understanding it is the key to unlocking huge savings and superior performance for your clients.

A variable speed drive pump is a complete system where a smart controller (the VFD) adjusts the pump motor's speed in real-time. This perfectly matches water flow to demand, providing constant, reliable pressure and drastically cutting energy consumption.

Dive Deeper: The Core of a Smarter System

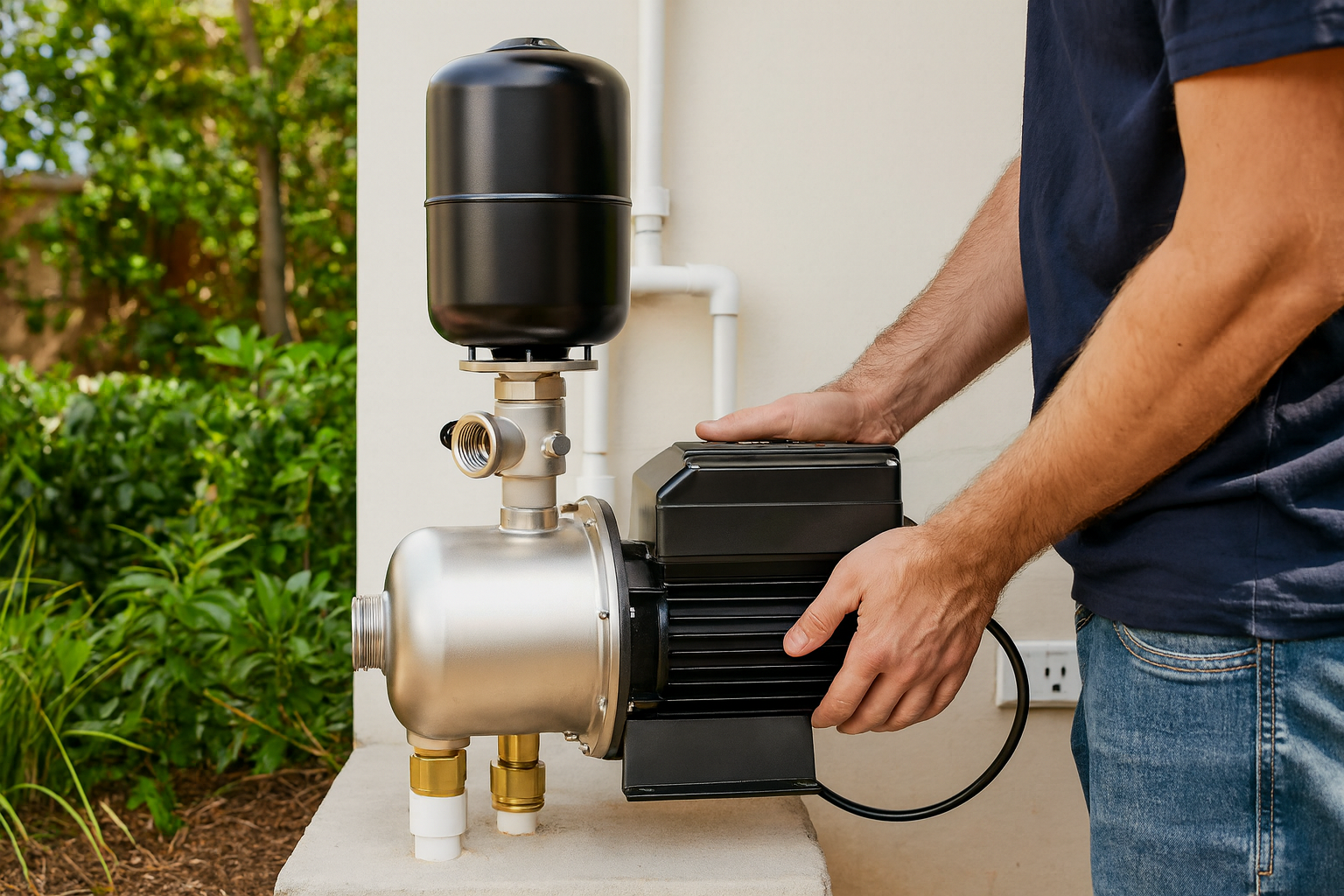

At its heart, a variable speed drive pump isn't just one thing; it's a team of three key components working in perfect harmony to outperform older technology.

The Three Core Components of a VSD Pump

1. The Pump: This is the "wet end" that moves the water. Quality matters here. In our high-efficiency models, we use premium materials like corrosion-resistant AISI304 stainless steel impellers to ensure durability and long-term performance.[^4]
2. The Motor: This provides the power. Modern systems have moved beyond standard induction motors. We use a high-efficiency Permanent Magnet Synchronous Motor (PMSM), which is far more powerful and efficient for its size.[^3]
3. The Variable Frequency Drive (VFD): This is the brain. It's a sophisticated electronic controller that tells the motor precisely how fast to run based on real-time feedback.

This integrated approach is revolutionary compared to a traditional fixed-speed pump. Old pumps only know two states: off or 100% full speed. This "all or nothing" approach creates massive problems. It causes a high inrush of current on startup, stressing electrical systems. It leads to pressure spikes and drops, and the violent stops and starts cause "water hammer," which damages pipes and fixtures. To cope, installers often have to oversize the pump, wasting even more energy. A variable speed drive pump, with its soft-start capability, elegantly solves all these issues. It provides exactly the power needed, no more, no less.

Is A 'Variable Speed Pump' The Same As A Variable Speed Drive Pump?

Hearing different terms for what seems like the same product can be confusing. Are you sourcing the right technology, or are you getting lost in semantics? Let's clear this up for good.

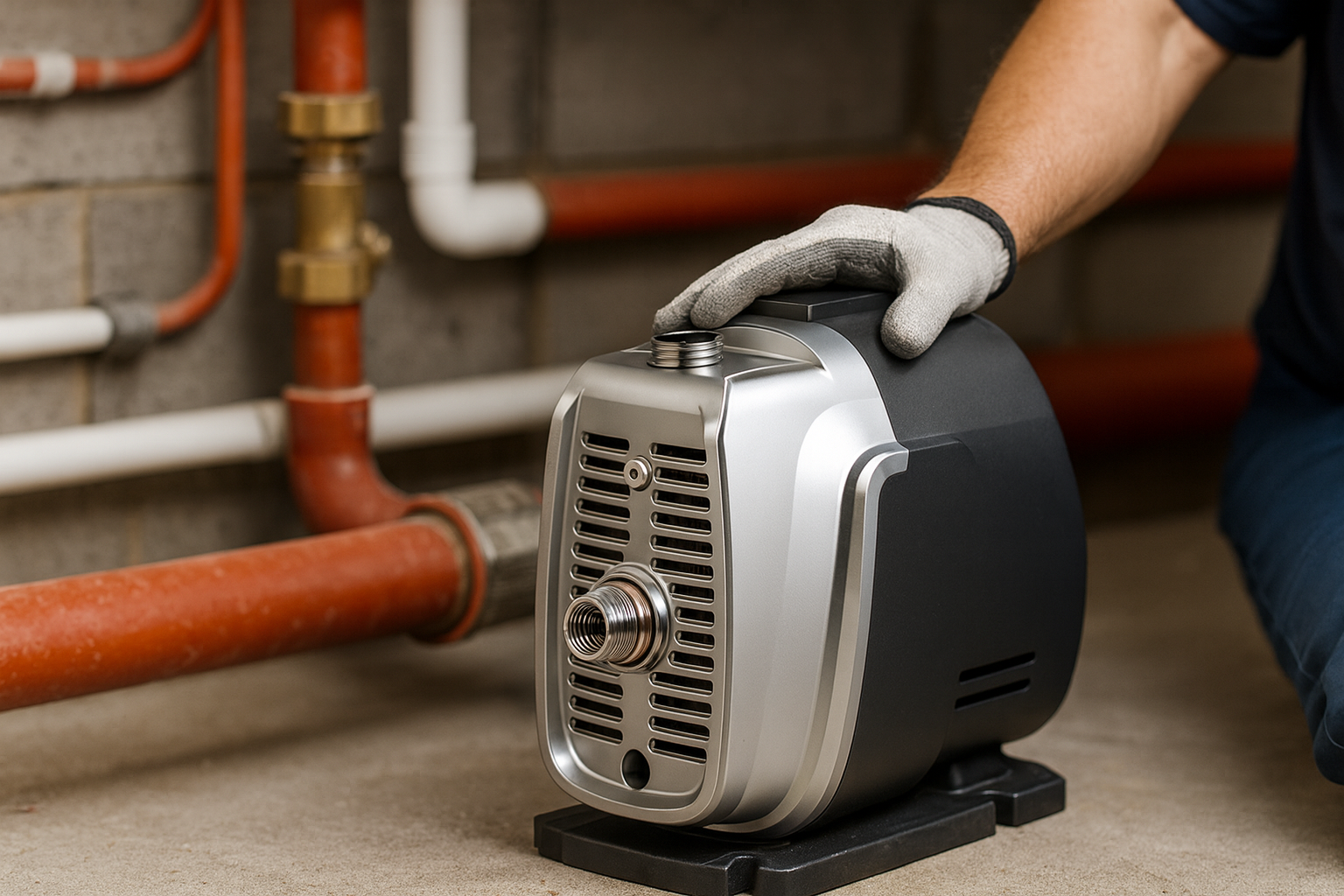

Essentially, yes. "Variable speed pump" is just common shorthand for a "variable speed drive pump." The term refers to the complete, integrated system—the pump plus the VFD controller—that enables the variable speed functionality for perfect pressure control.

Dive Deeper: Focus on the System, Not Just the Name

The terms are used interchangeably in the industry, but as a business owner like my client Leon, it’s important to understand why you should insist on an integrated system. The "drive" is the brain, and the "pump" is the muscle. You can't get the smart functionality of one without the other.

Why An Integrated System is Non-Negotiable

When you purchase a modern variable speed pump from a reputable brand like RAFSUN, Grundfos, or DAB, you are buying a complete, factory-tuned system. Our BWE and BWD series pumps, for example, are designed from the ground up as a single unit.[^3][^6] The VFD controller is perfectly matched to the high-efficiency permanent magnet motor it controls. This is crucial for performance and reliability.

Last year, after my R&D team and I developed our new permanent magnet motor, I visited two of my top distributors in the U.S., Eason and Peter. They told me this new integrated design was a game-changer for their business. "Seven," Eason said, "the new variable speed drive pump is 45% smaller and 47% lighter than the old models. My installation crews can do two jobs in the time it used to take for one." This is the power of designing a complete system, not just selling separate parts. You get a product that is more compact, easier to install, and guaranteed to work efficiently right out of the box. For a distributor, this means fewer customer complaints, a simpler inventory, and a single point of contact for warranty and support—all of which lead to a healthier bottom line.

Can You Just Add A Variable Speed Drive To Any Old Pump?

Thinking about a cheap upgrade for existing systems? Retrofitting a VFD onto an older pump might seem like a smart shortcut to efficiency, but it can lead to costly failures and unhappy clients.

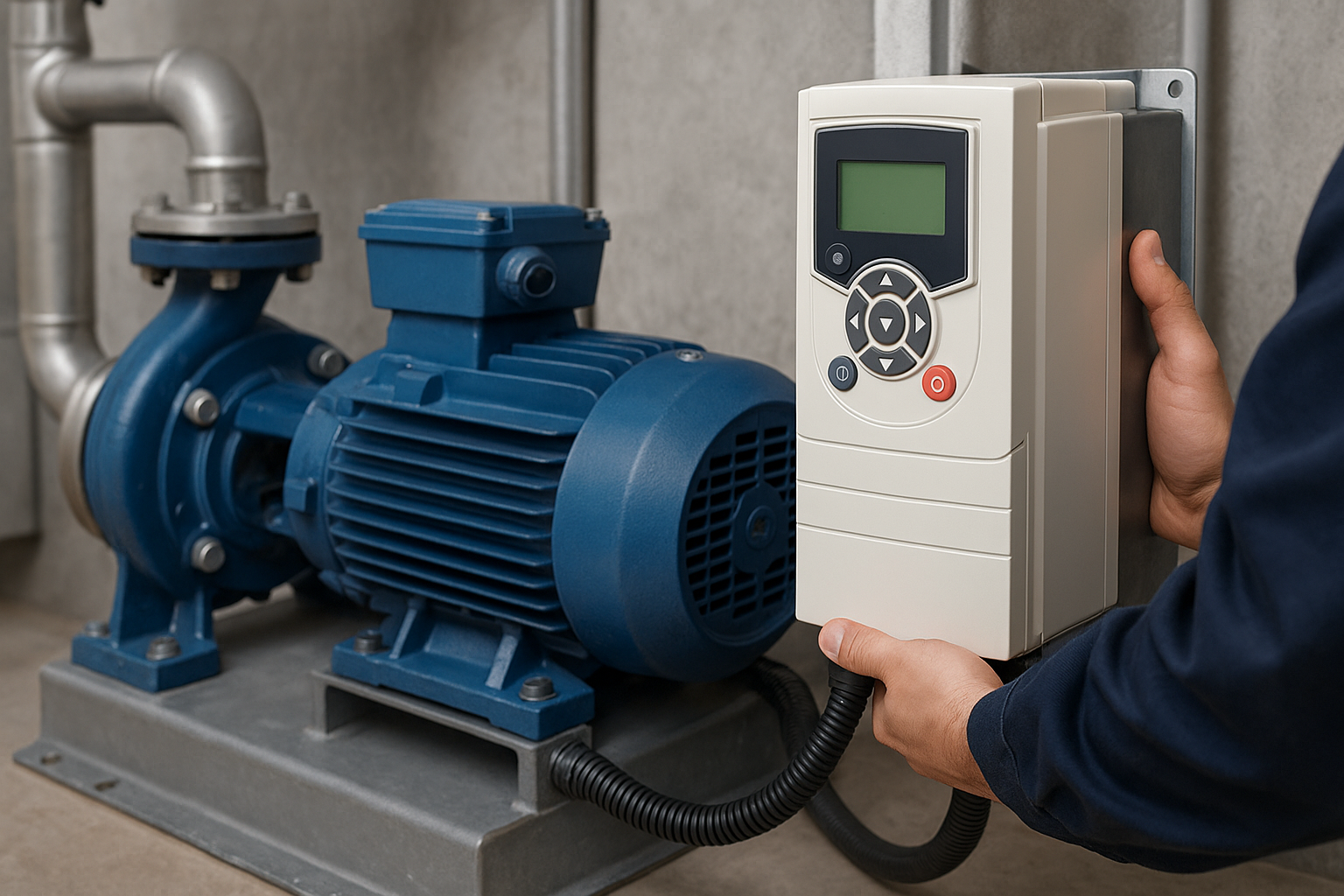

While you can technically pair a VFD with some standard induction motors, it's a risky and often ill-advised move. For peak efficiency, quiet operation, and long-term reliability, the pump and motor must be specifically designed to work together in a modern variable speed drive pump system.

Dive Deeper: The Hidden Dangers of a Mismatched System

I've talked to many business owners who are weighing their options. The idea of a simple retrofit is tempting, but the technical risks are significant and can damage your reputation as a supplier.

Why Retrofitting Often Fails

Most standard pump motors are not designed to run at variable speeds. When you force them to, a cascade of problems can occur.

• Overheating: Standard motors are cooled by an internal fan that spins at a fixed, high speed. When the VFD slows the motor down, the fan also slows down, leading to poor cooling and eventual a burnout.
• Bearing Failure: VFDs can induce stray electrical currents that travel through the motor shaft and discharge through the bearings, a phenomenon known as "fluting." This erodes the bearings and causes premature, catastrophic failure.
• Harmonic Distortion: VFDs can introduce "noise" or harmonic distortion back into the electrical system, which can interfere with other sensitive electronic equipment on the same circuit.
• Cable Damage: The high-frequency electrical pulses from a VFD can cause "reflected waves" in long cable runs, leading to voltage spikes that can destroy the motor's insulation.

A purpose-built variable speed drive pump avoids all these problems because the entire system is engineered for this specific function.

What Is The Secret Working Principle Behind A VFD?

It can sound like magic. A little box that precisely controls a powerful motor's speed? The principle is actually straightforward for anyone to understand, yet its impact on performance is enormous.

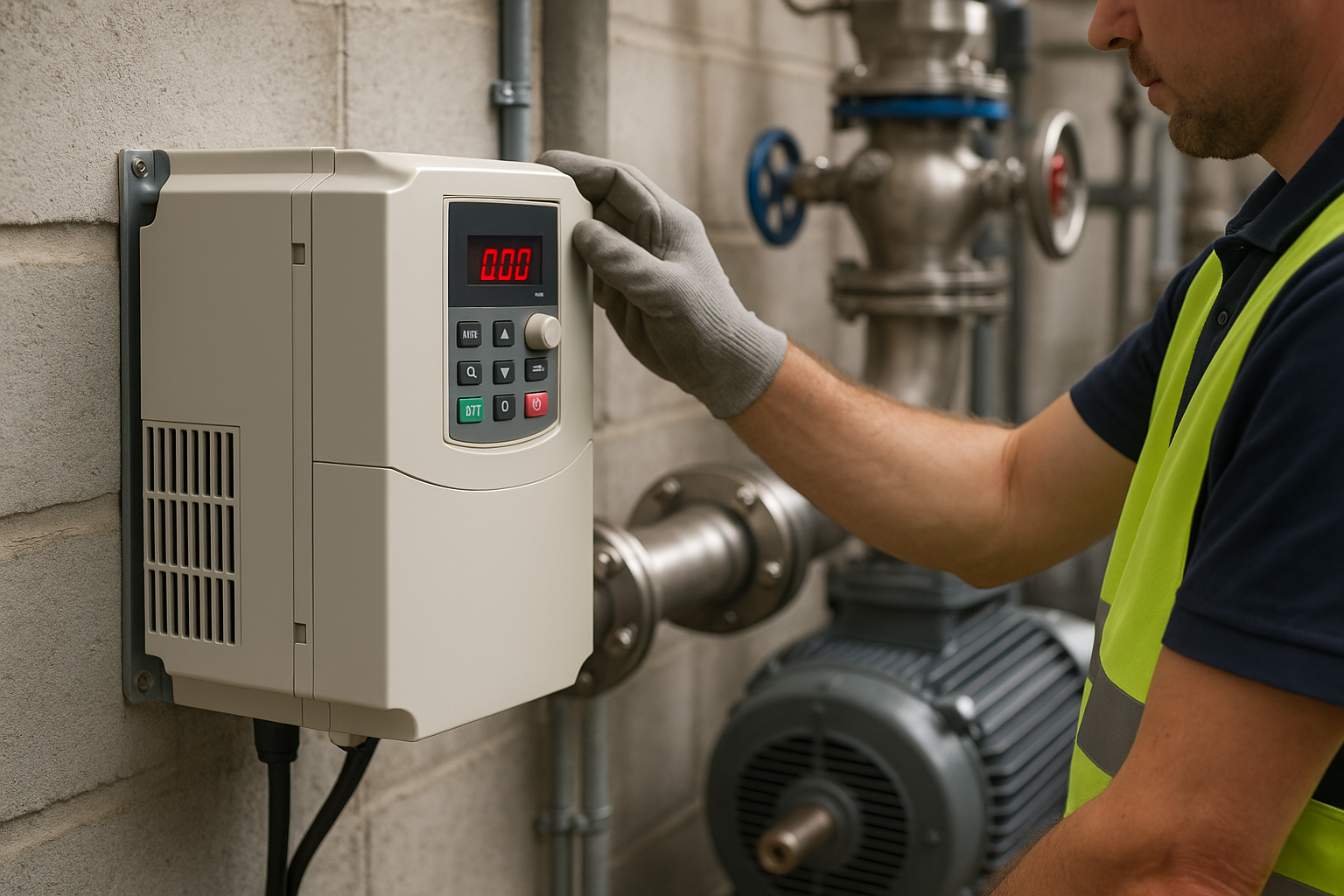

A Variable Frequency Drive (VFD) works by taking standard AC electrical power, converting it into DC power, and then using high-speed transistors to digitally create a brand new, adjustable AC signal. By changing the frequency of this new signal, the VFD precisely controls the motor's speed.

Dive Deeper: The Three-Step Electrical Transformation

Understanding how a VFD works demystifies the technology and shows why it's so incredibly effective. It’s a simple three-step process that happens thousands of times per second inside the controller. Think of it like a highly advanced light dimmer switch for a powerful motor.

From AC to DC and Back Again

1. Rectifier Stage (AC to DC): The VFD takes the standard, fixed-frequency AC power from the wall (e.g., 50Hz or 60Hz). A set of diodes, which act like one-way electrical valves, converts this alternating current into a rough, pulsating direct current (DC).
2. DC Bus Stage (Smoothing): This rough DC voltage is then smoothed out by large capacitors. These components act like a small reservoir of electrical energy, filtering out the pulses to create a stable, high-voltage DC supply ready for the next stage.
3. Inverter Stage (DC to new AC): This is where the real intelligence lies. A set of high-speed transistors (IGBTs) takes the smooth DC power and, using a technique called Pulse Width Modulation (PWM), slices it up into thousands of tiny pulses per second. By precisely varying the width and timing of these pulses, the VFD can build a brand new, synthetic AC sine wave. It can create this wave at any frequency it wants—from just a few Hertz up to its maximum rating. Since an AC motor's speed is directly tied to the frequency of the power it receives, the VFD now has total, precise control over the pump's speed.

How Does A Complete Variable Speed Drive Pump System Work Together?

You know how the VFD controls the speed, but how does the whole system think? It's a constant, intelligent conversation happening between the components to deliver perfect water pressure every single time.

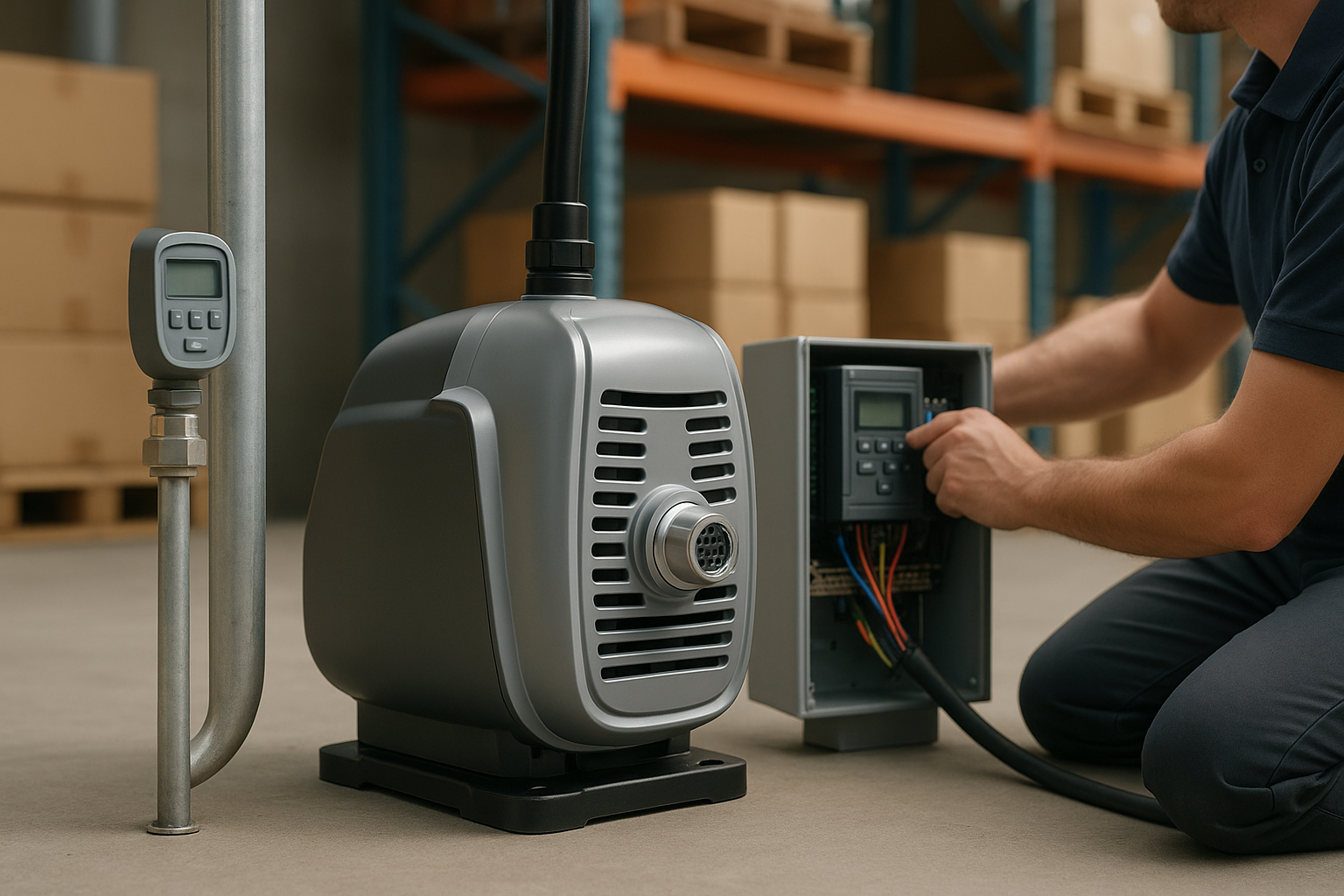

The system operates in a continuous feedback loop. A pressure sensor in the pipeline constantly measures the water pressure. It tells the VFD if the pressure is too high or low, and the VFD instantly adjusts the pump's speed to maintain the exact user-defined setpoint.

Dive Deeper: The Intelligent Conversation in Action

This feedback loop is what elevates a variable speed drive pump from a simple machine to a "smart" appliance. It's not just running on a timer; it's actively responding to real-world conditions to deliver the best possible user experience while saving the most energy.

The Constant Conversation: Sensor, Drive, and Pump

Imagine you or your client uses the simple interface on the pump to set the desired water pressure to 3.5 bar. Here's the conversation that follows:

1. A family member opens a shower. This demand for water causes the pressure in the pipe to begin to drop below 3.5 bar.
2. The pressure sensor, a small but critical device, instantly detects this drop and sends a low-pressure signal to the VFD controller.
3. The VFD interprets this signal and immediately increases the frequency of the power going to the motor. The pump speeds up just enough to meet the new demand.
4. As the pump speed increases, it pushes more water, and the pressure climbs right back to the 3.5 bar setpoint. The person in the shower never even notices a flicker in pressure.

This entire process is seamless and happens in a fraction of a second. As I mentioned, my customers Eason and Peter shared incredible feedback from homeowners. They were amazed to learn that with a single faucet open, their new pump was only drawing about 100 watts. When a second one opened, it smoothly ramped up to 200 watts. When all faucets are finally closed, the sensor detects a slight pressure rise, the VFD slows the motor to a gentle stop, and the pump enters a low-power sleep mode, consuming almost no energy. This is the definition of smart efficiency. Many of our pumps also offer optional WiFi functionality, allowing users to monitor and control their system from anywhere, adding another layer of convenience.[^3]

Beyond Speed: How Does A VFD Intelligently Control and Protect The Pump?

Simply changing a pump's speed is impressive, but a modern variable speed drive pump controller is so much more than a throttle. It acts as a full-time, vigilant bodyguard for your entire water system.

A VFD provides a suite of advanced protection features that go far beyond speed control. It guards the pump motor against dry-running, power surges, and overheating, dramatically extending equipment lifespan and preventing catastrophic failures for the ultimate peace of mind.

Dive Deeper: The Ultimate Safety Net for Your Investment

When you invest in a quality variable speed drive pump, you're not just buying performance; you're buying insurance for your client's water system. A single failure can cost thousands in repairs and damage a distributor's reputation. That's why our pumps include over 14 distinct, automatic protection functions.[^1] Here are four of the most critical ones that I know save my clients from costly headaches.

The 4 Ultimate Safety Features of a VSD Pump

1. Dry-Run Protection: This is one of the most common pump killers. If the water source (like a tank or well) runs dry, a traditional pump will keep running, overheat, and destroy its seals and motor in minutes. A VSD pump intelligently senses the lack of load and shuts down automatically, displaying an error and waiting for the water to return.
2. IP55 Environmental Protection: Many pumps are installed outdoors or in damp basements. Our new pumps are built with an IP55 rating and a circuit board that is fully sealed with an aircraft-grade potting compound. As my U.S. clients confirmed, this is a huge selling point. Rain, dust, and condensation can't get in to short-circuit the VFD's sensitive electronics, a common failure point on lesser pumps.[^3]
3. Comprehensive Electrical Protection: The VFD is a fortress for the motor. It constantly monitors for over-voltage, under-voltage, over-current, phase loss, and short circuits. If it detects any dangerous electrical condition, it safely shuts the system down before the motor is damaged.
4. Advanced Temperature Protection: This is an industry-first innovation I'm particularly proud of. Old pumps could overheat when moving hot water or when a tap is barely open (a low-flow condition). In the worst cases, this could cause PVC pipes to soften and burst. Our pump has a built-in temperature sensor and a smart algorithm that detects these conditions and cycles the pump to prevent overheating, ensuring user safety and system integrity.

Conclusion

A variable speed drive pump is the definitive modern solution for efficient, constant-pressure water supply. It saves energy, protects the system, and ensures reliability for years to come.
